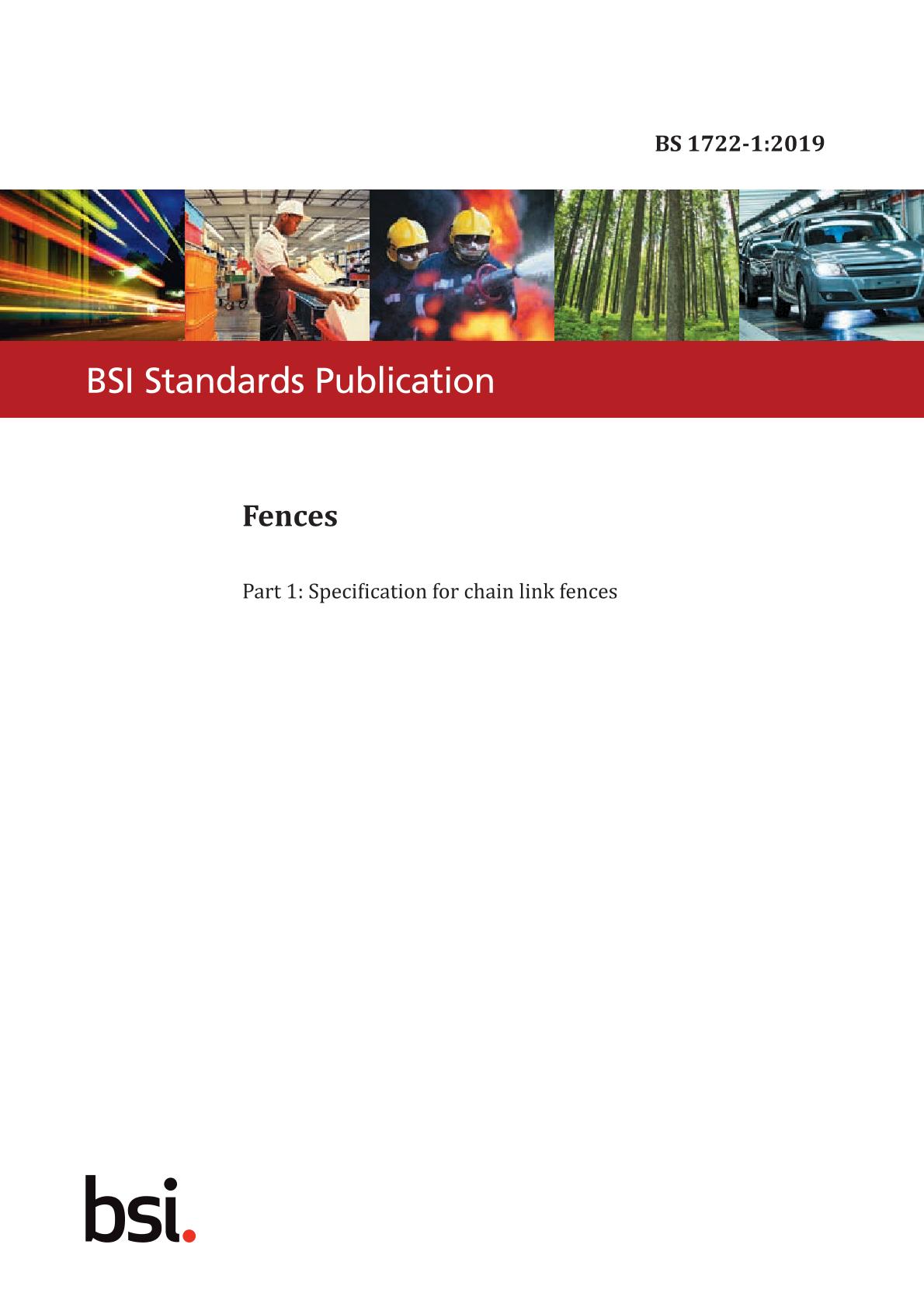

BS 1722-1:2019

Scope: This part of BS 1722 specifies requirements for chain link fences and gates and gateposts for use with chain link fences. The gates specified are steel with a provision for chain link infill or other infill if required by the client.

This British Standard specifies requirements for fences up to 3.60 m in height with a chain link mesh infill. For other security fences, refer to BS 1722-10, BS 1722-12 and BS 1722-14, and for chain link mesh specifications refer to BS EN 10223-6.

This British Standard is divided into requirements for the material components for fences and for installation of the fences. This standard also specifies requirements for protective treatments. However, maintenance requirements for the fence after installation are outside the scope of this standard.

This British Standard specifies requirements for sizes of components. These are minimum requirements, and it is acceptable to use larger sizes, except where this could adversely affect the fitting of components, or if replacement parts are required to match with those already present.

Ground conditions might indicate that a variation in the length of a post or strut, or the depth to which these can be set, is desirable. The posts and struts and setting depths specified in this part of BS 1722 are intended for use in normal ground conditions, but if special conditions exist that warrant variations in the specification, e.g. the ground is softer or firmer than usual, such a change needs to be agreed with the specifier.

Cross References:
BS EN ISO 2063
BS 4320
BS EN 1011-2
BS EN 10244-2
BS EN ISO 12944
BS EN 10240
BS EN 10223-1
BS 8500
BS 4652
BS EN 1011-1
BS EN 10223-4
BS 7371-6
BS 7371-3
BS EN 10223-2
BS EN 10223-5
BS EN ISO 9606-1
BS 1722-16
BS EN 12620
BS EN 10223-7
BS 4102
BS EN ISO 1461
BS EN 10223-3
BS EN 10223-6:2012
BS EN 1991-1-4
BS EN 10219-2
BS 1722-14
BS EN 10210-2
BS EN 10219-1
BS EN 10210-1
BS 1722-12
BS EN 10296-1
BS EN 1176-1
BS EN ISO 14713
BS EN 10255
DIN 1615
BS EN 10025-2
BS EN 10056-1
BS 4-1
BS 1722-10


All current amendments available at time of purchase are included with the purchase of this document.
