BS 2A 266 TO 2A 271:2016

Bolt, 100° Countersunk head, Hi-Torque speed drive recess, UNJF thread, split pin hole option, titanium alloy, various finishes, Classification: 80 Tf/in^2 (1 100 MPa) at TA/+315 °C

BSI Group, 02/29/2016

Publisher: BS

File Format: PDF

$80.00$160.02

Description

Published:29/02/2016

Pages:20

File Size:1 file , 750 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

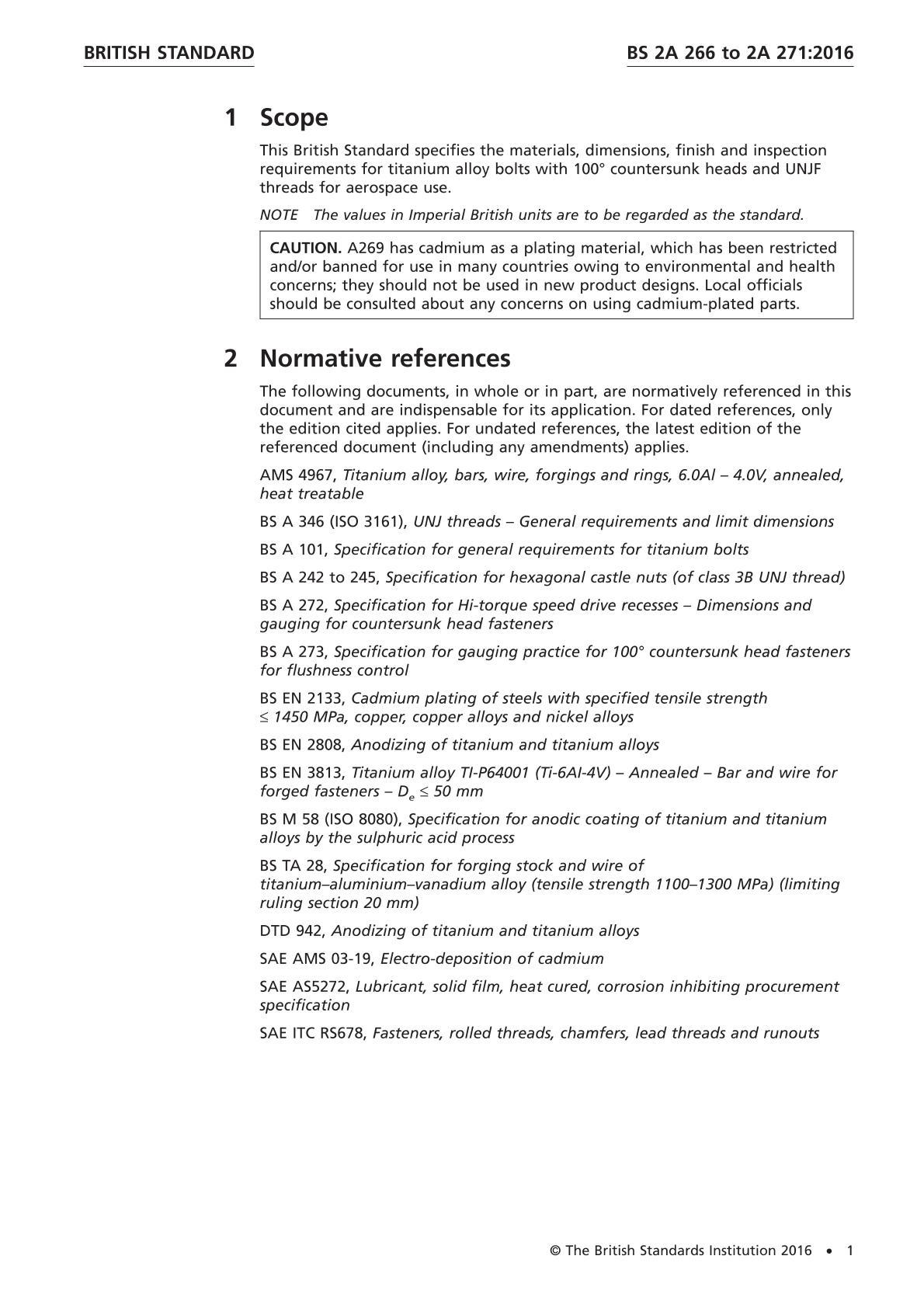

BS 2A 266 TO 2A 271:2016 specifies the materials, dimensions, finish and inspection requirements for titanium alloy bolts with 100° countersunk heads and UNJF threads for aerospace use.

NOTE The values in Imperial British units are to be regarded as the standard.

CAUTION. A269 has cadmium as a plating material, which has been restricted and/or banned for use in many countries owing to environmental and health concerns; they should not be used in new product designs. Local officials should be consulted about any concerns on using cadmium-plated parts.

Cross References:
AMS 4967
BS A 346
ISO 3161
BS A 101
BS A 242 to 245
BS A 272
BS A 273
BS EN 2133
BS EN 2808
BS EN 3813
BS M 58
ISO 8080
BS TA 28
DTD 942
SAE AMS 03-19
SAE AS5272
SAE ITC RS678
DEF STAN 01-5
DEF STAN 00-970

All current amendments available at time of purchase are included with the purchase of this document.

BS 2A 266 TO 2A 271:2016

Bolt, 100° Countersunk head, Hi-Torque speed drive recess, UNJF thread, split pin hole option, titanium alloy, various finishes, Classification: 80 Tf/in^2 (1 100 MPa) at TA/+315 °C
