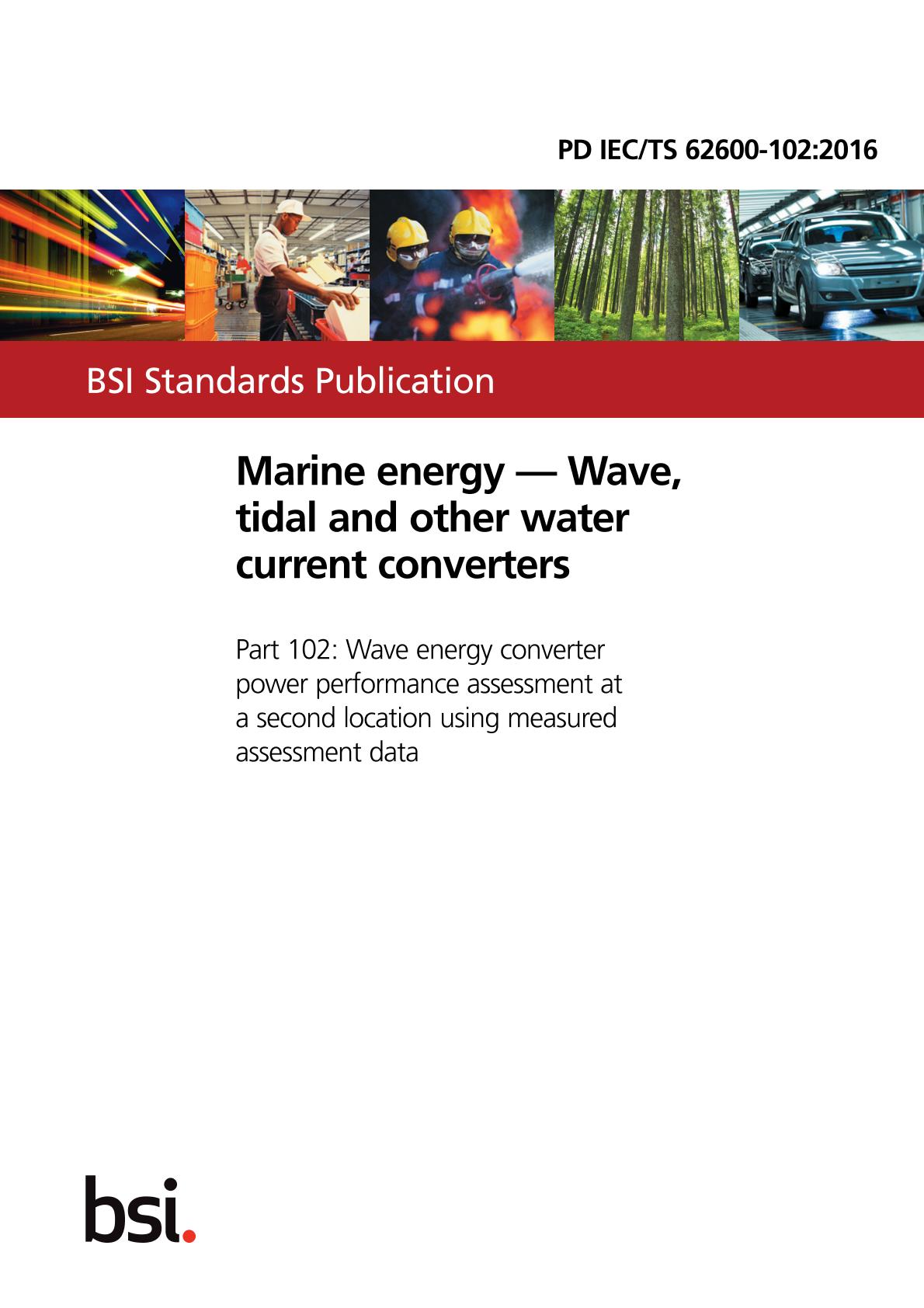

BS PD IEC/TS 62600-102:2016

BS PD IEC/TS 62600-102:2016 Wave Energy Converters (WEC) need to be designed to operate efficiently at different locations. Systematic methods should be used to evaluate the power performance of a WEC at a second location (hereinafter Location 2) based on power performance assessment at a first location (hereinafter Location 1). The degree of similarity of the measured WEC (WEC 1) and the metocean conditions at Location 1 to the secondary WEC (WEC 2) at Location 2 determine the methodology and the applicability of this technical specification.

This part of IEC 62600, which is a Technical Specification, describes the required methods and the required conditions to determine the power performance of the WEC 2 in Location 2, possibly at a different scale and with configuration changes to accommodate the new site conditions, in all cases based on measured power performance of WEC 1 in Location 1. This technical specification allows for assessment at Location 1 or Location 2 based on limited/incomplete data material, as long as this is accompanied by a validated numerical model or physical model and assessment of the uncertainty involved. Another key element is transparency in the assessment.

This technical specification includes:

• Specification of data requirements needed from the original measurements at Location 1 including an assessment of the uncertainty involved (if based on limited/incomplete data material) in addition to those specified in IEC TS 62600-100 and IEC TS 62600-101.
• Limitation on the changes that are allowed to the WEC and the specification of the location.
• Wave data required at Location 2, as a minimum the requirements found in IEC TS 62600-101.
• Development of the power matrix at Location 2.
• Validation of the power matrix at Location 2.
• Assessment of uncertainties in the derived performance parameters at Location 2.
• Requirements for the allowable power performance transfer by geometric, kinematic and dynamic similarity.
• Requirements for the allowable incorporation of additional empirical model data.
• Requirements for the allowable incorporation of additional numerical model data.

The technical specification does not cover the following items:

• The original data measurement at Location 1 (see IEC TS 62600-100).
• Environmental concerns.
• Operation and maintenance.

Cross References:
IEC TS 62600-1
IEC TS 62600-100
IEC TS 62600-101:2015
IEC TS 62600-2


All current amendments available at time of purchase are included with the purchase of this document.
