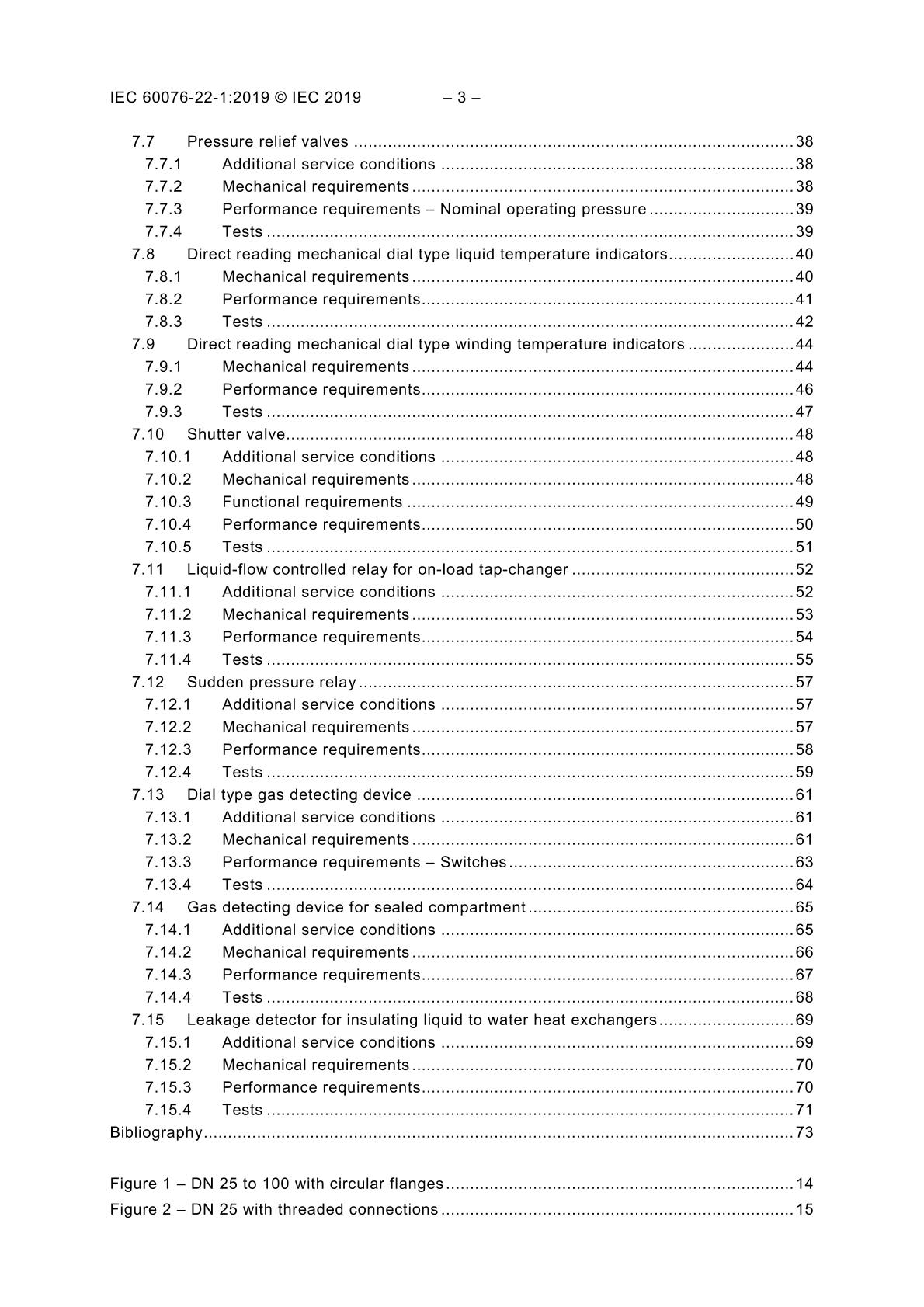

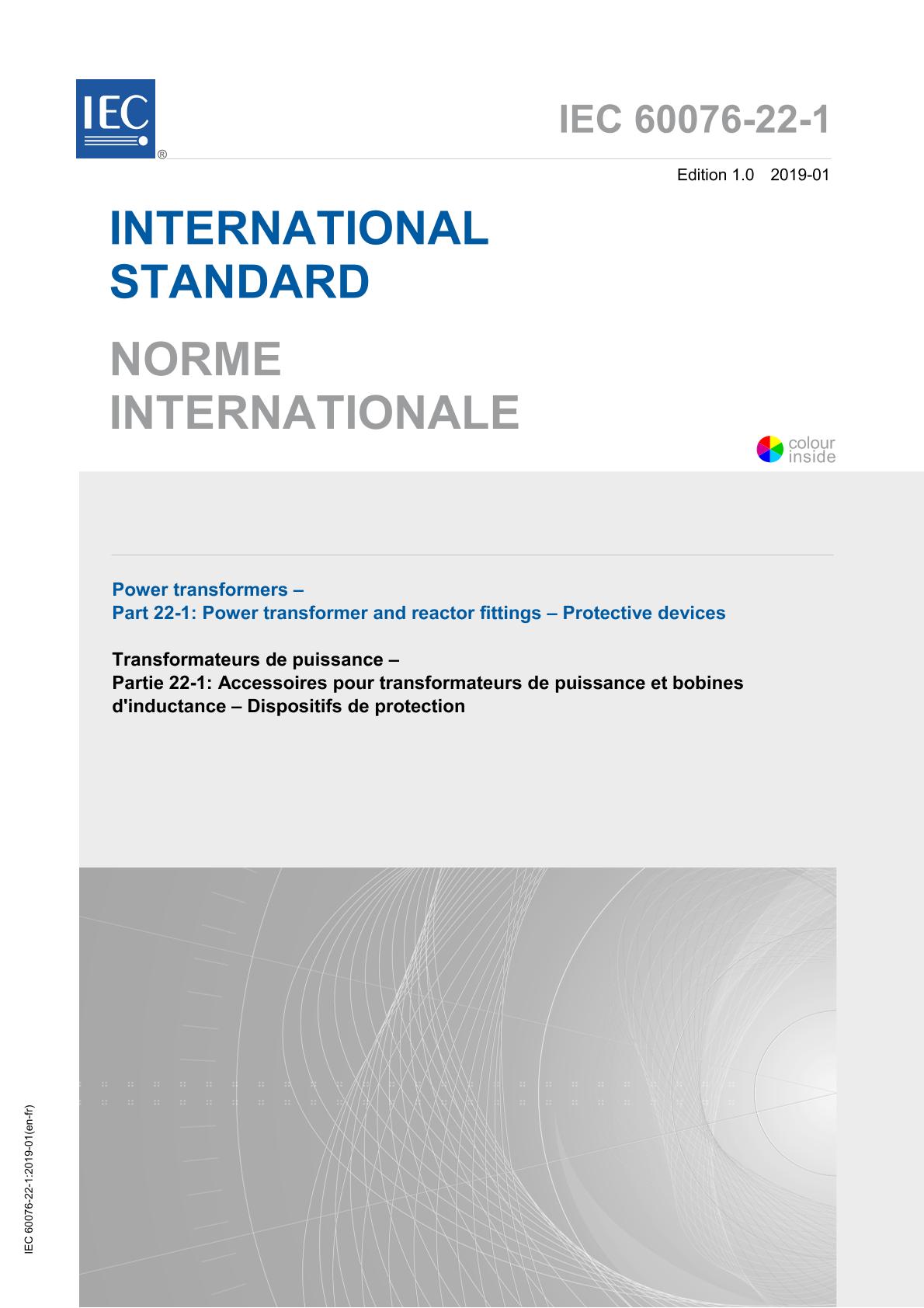

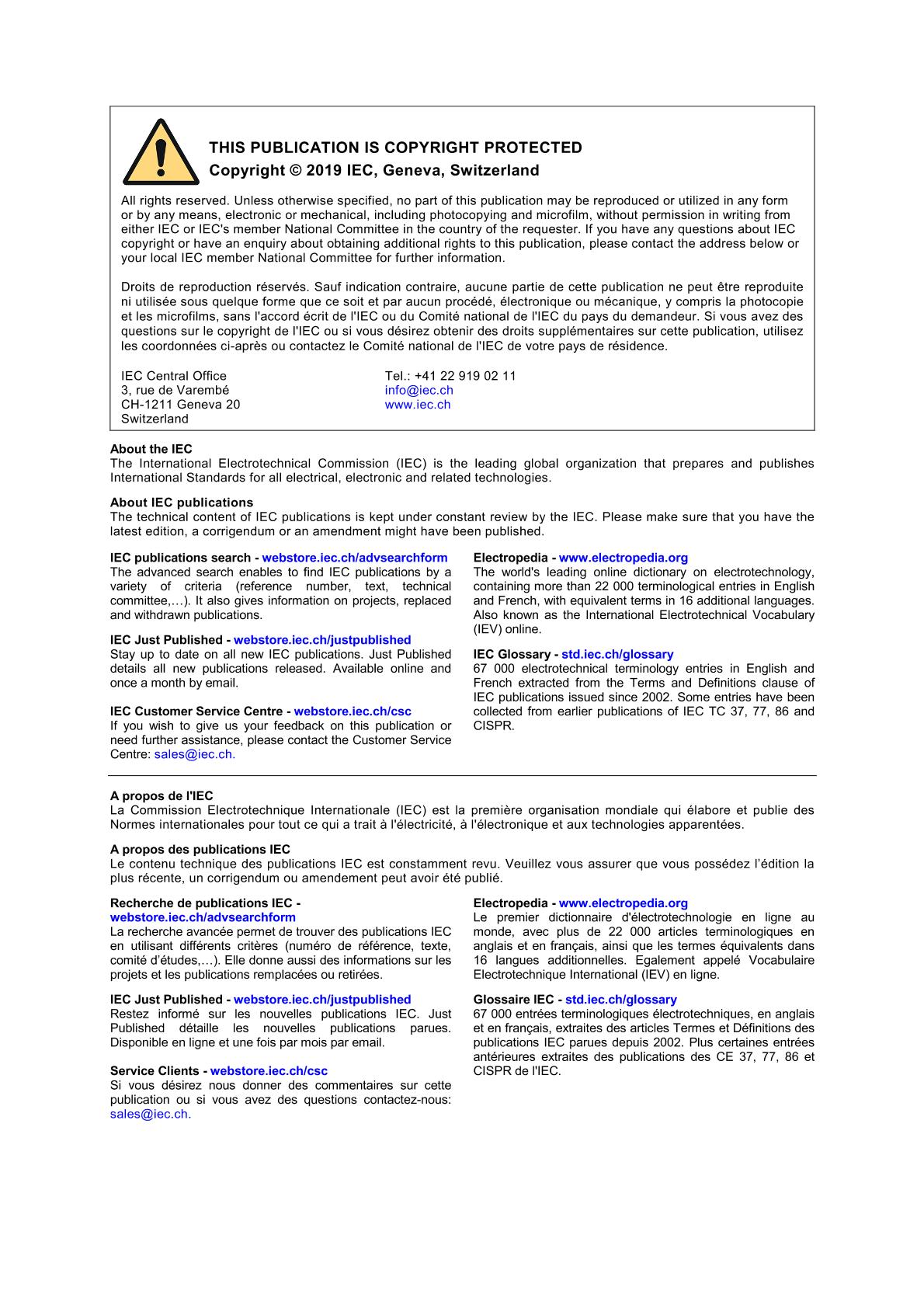

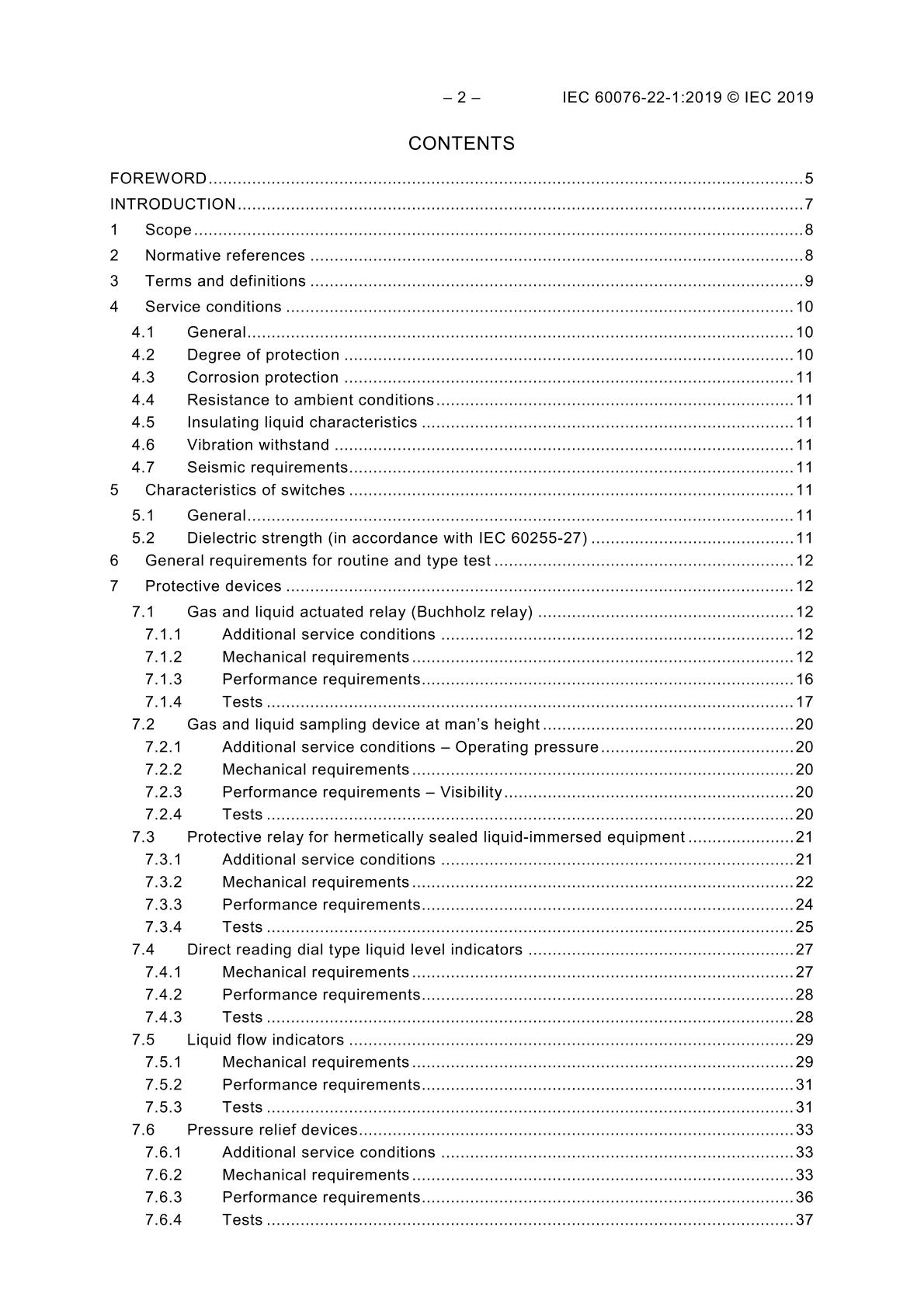

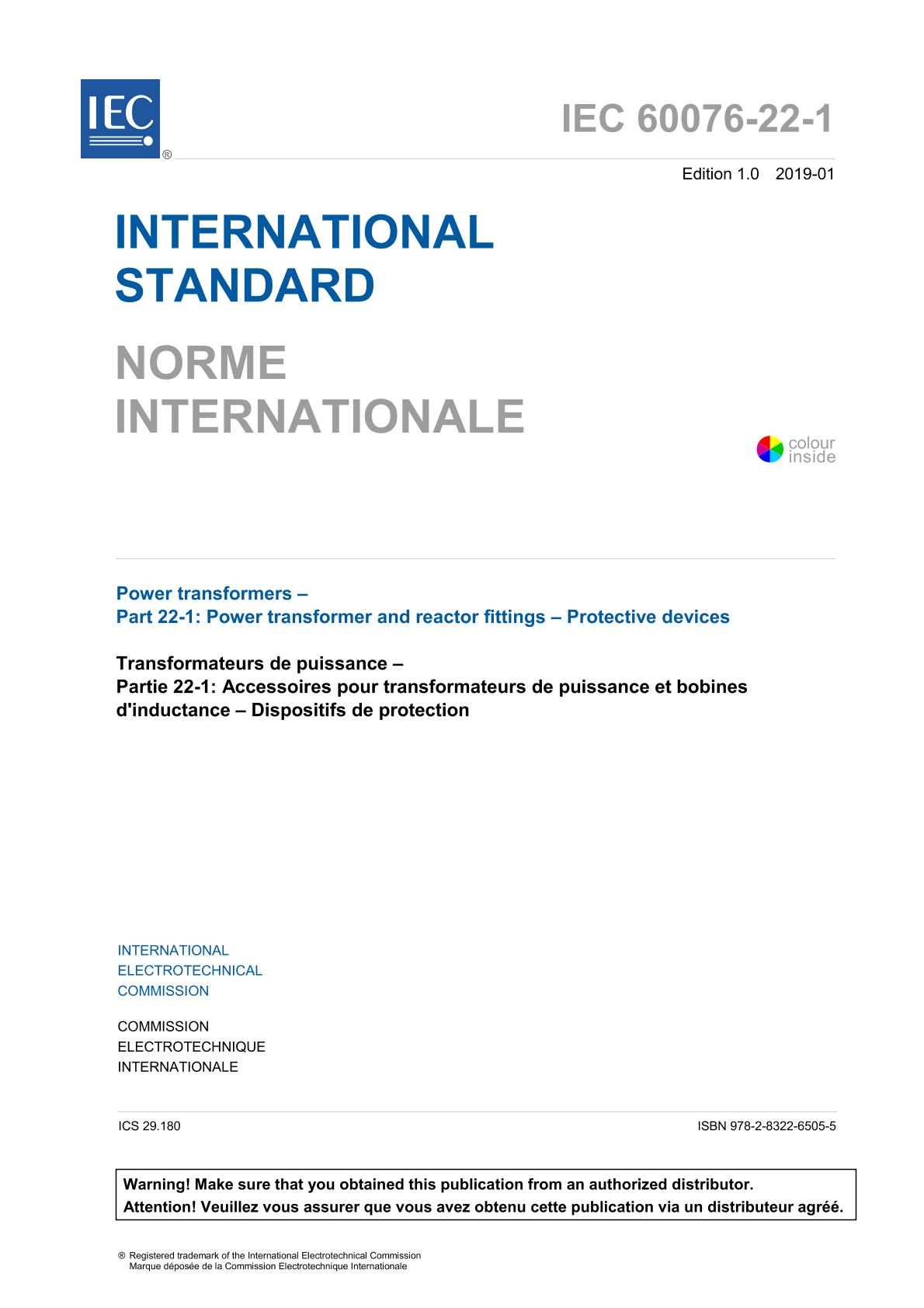

PDF Preview

IEC 60076-22-1 Ed. 1.0 b:2019

Power transformers - Part 22-1: Power transformer and reactor fittings - Protective devices

International Electrotechnical Commission, 01/29/2019

Publisher: IEC

File Format: PDF

$208.00$417.00


Published:29/01/2019

Pages:148

File Size:1 file , 3.4 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 60076-22-1:2019 applies to protective devices mounted on liquid-immersed power transformers in accordance with IEC 60076-1 and reactors in accordance with IEC 60076-6 with or without conservator for indoor or outdoor installation. It outlines the service conditions and the mechanical and electrical requirements that are common to all the devices, which are relevant for the safety of the machine having a function of signalization of abnormal operating conditions. It also outlines the operation requirements specific to each device as well as, in some cases, the preferred dimensions relevant for interchangeability and the type and routine test to be performed.
Keywords: protective devices mounted on liquid-immersed power transformers°°
