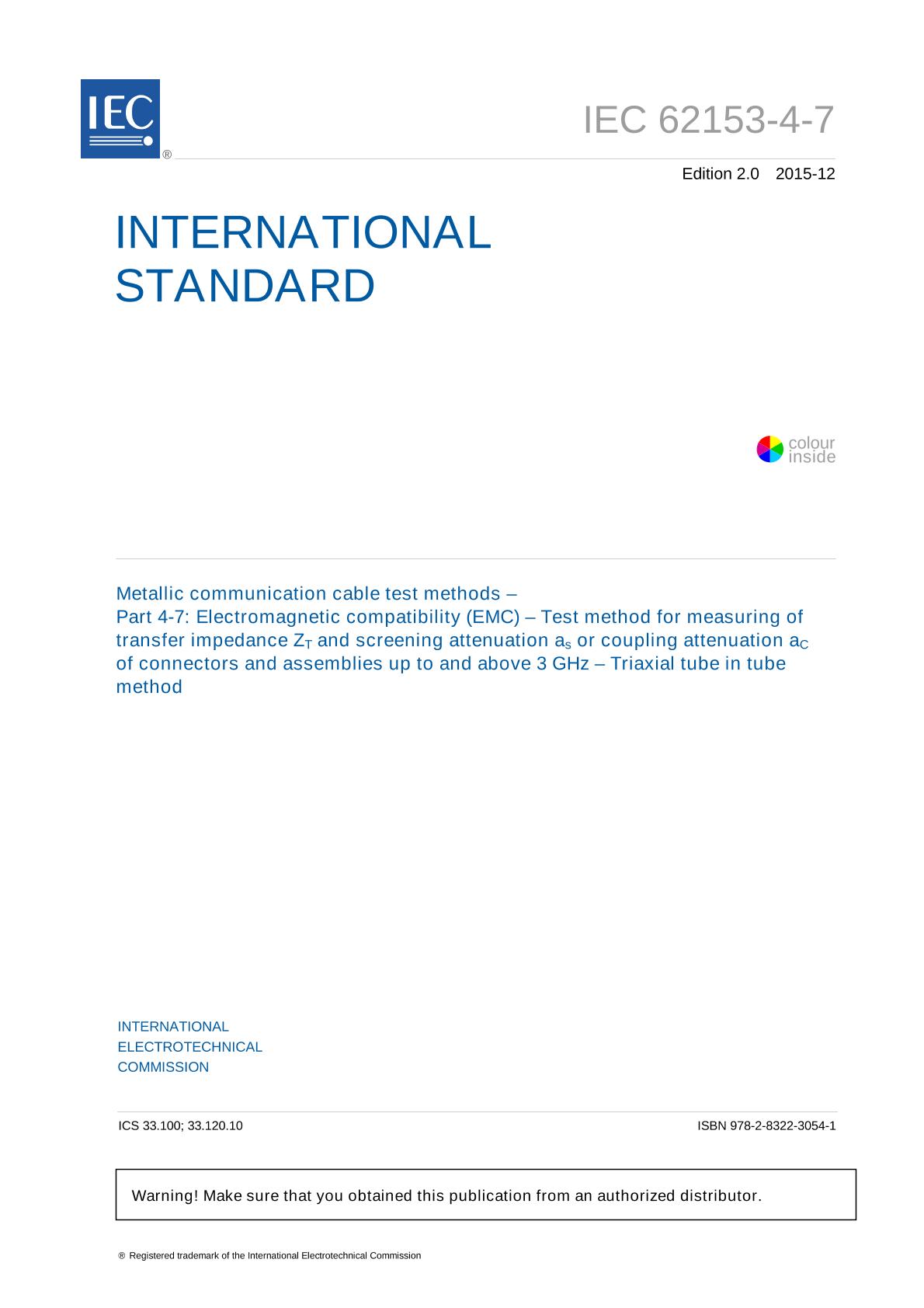

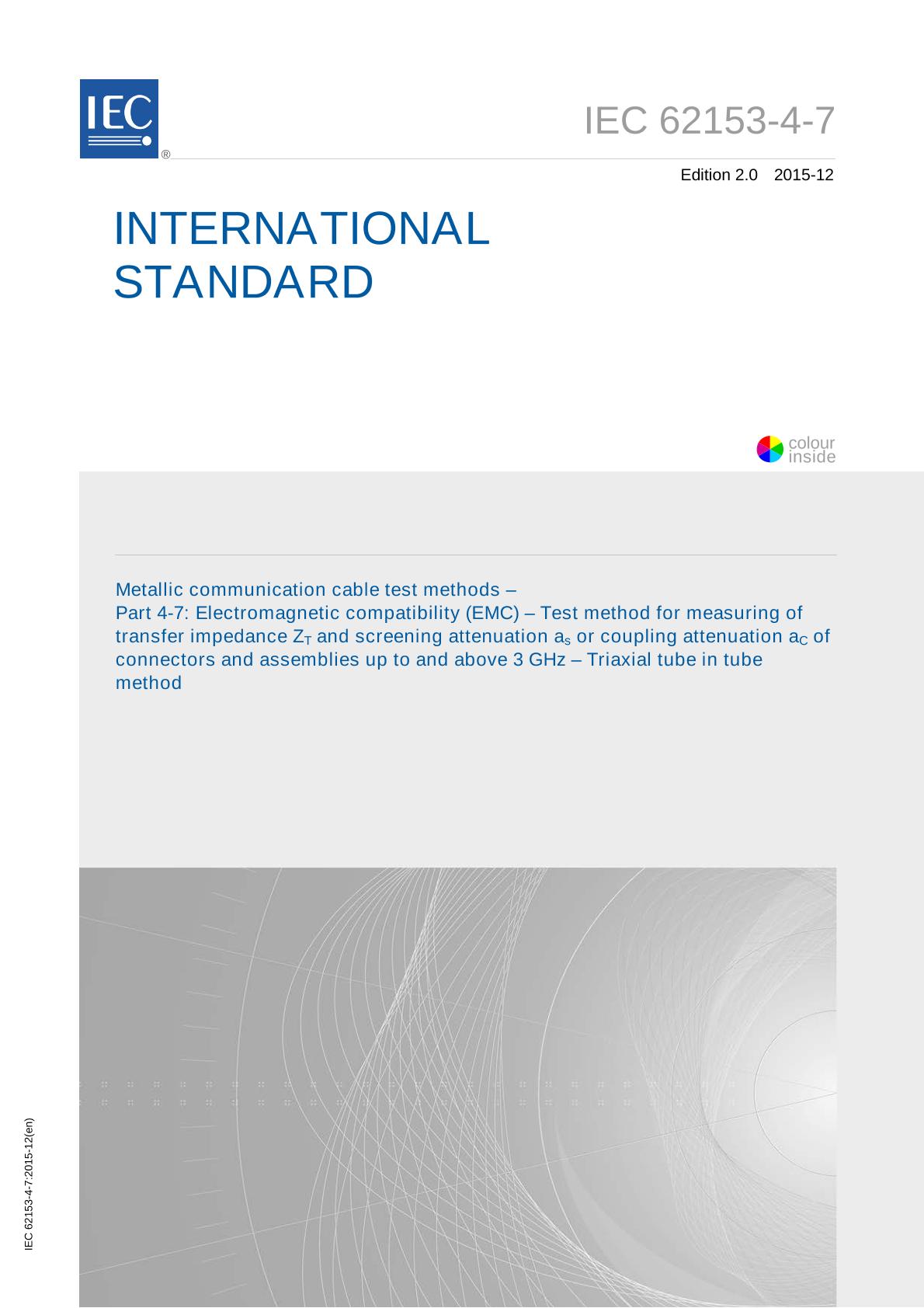

IEC 62153-4-7 Ed. 2.0 en:2015

IEC 62153-4-7:2015(E) describes a triaxial method, suitable to determine the surface transfer impedance and/or screening attenuation and coupling attenuation of mated screened connectors (including the connection between cable and connector) and cable assemblies. This method could also be extended to determine the transfer impedance, coupling or screening attenuation of balanced or multipin connectors and multicore cable assemblies. For the measurement of transfer impedance and screening- or coupling attenuation, only one test set-up is needed. This edition includes the following significant technical changes with respect to the previous edition:
The document is revised and updated. The changes of the revised IEC 62153-4-3:2013, and IEC 62153-4-4:2015, are included. Measurements can be achieved now with mismatch at the generator site, impedance matching devices are not necessary.
