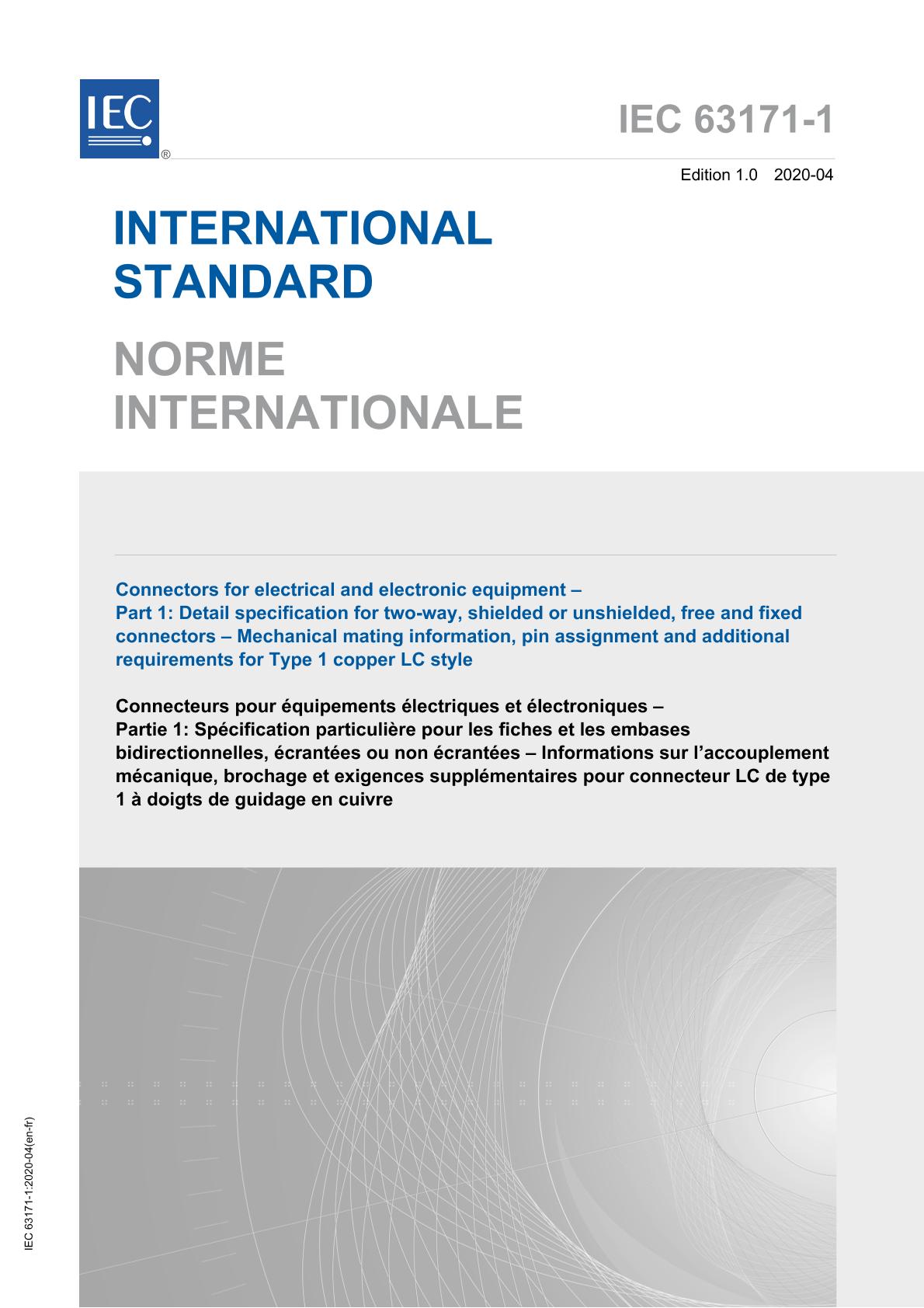

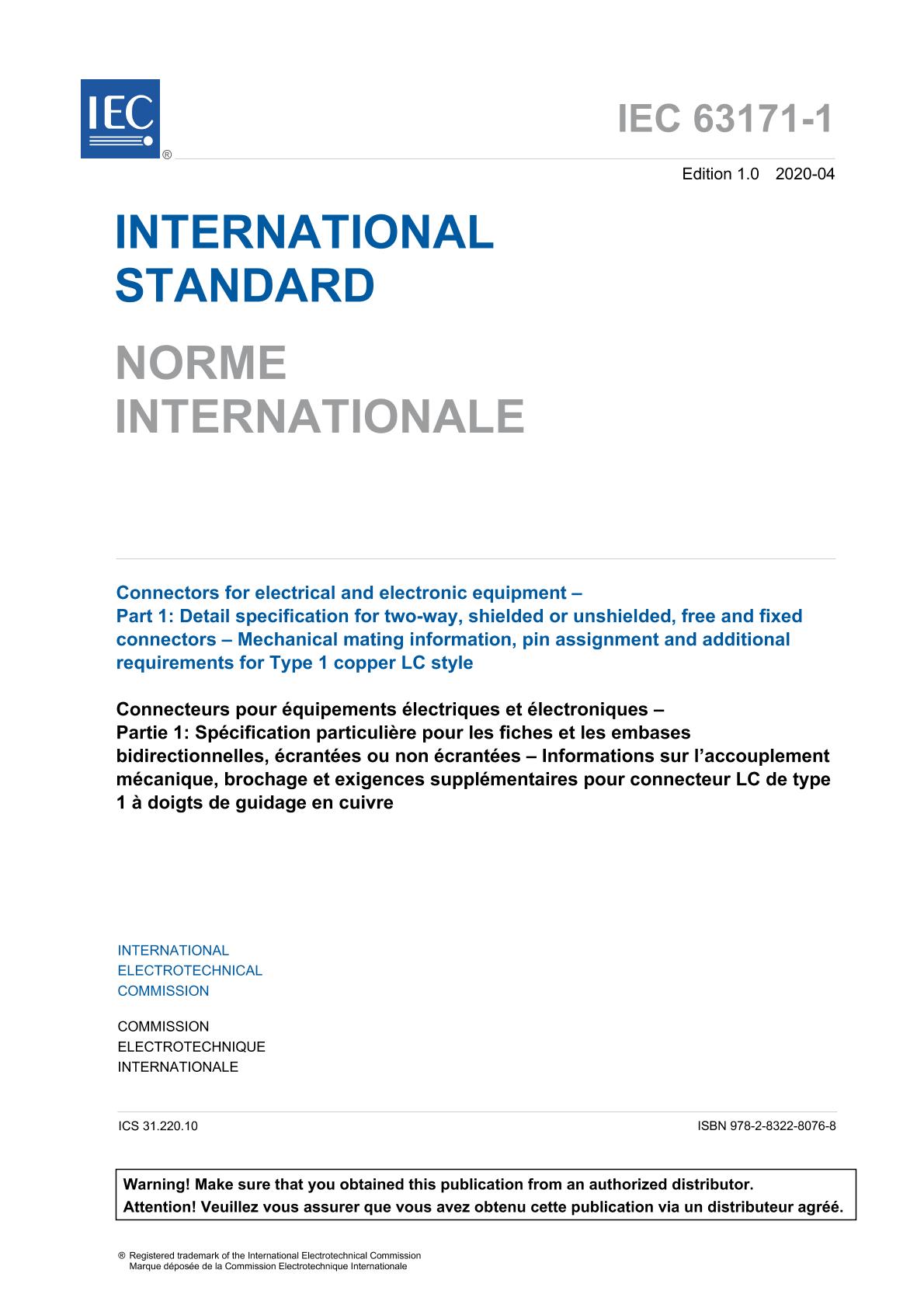

IEC 63171-1 Ed. 1.0 b:2020

Connectors for electrical and electronic equipment - Part 1: Detail specification for two-way, shielded or unshielded, free and fixed connectors - Mechanical mating information, pin assignment and additional requirements for Type 1 copper LC style

International Electrotechnical Commission, 04/14/2020

Publisher: IEC

File Format: PDF

$139.00$278.00

Description

Published:14/04/2020

Pages:63

File Size:1 file , 2.7 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

IEC 63171-1:2020 covers two-way, shielded or unshielded, free and fixed connectors for data transmission with frequencies up to 600 MHz and with current carrying capacity up to 2,0 A at 60 °C. It is intended to specify the common dimensions, mechanical, electrical, signal integrity, environmental characteristics, reliability specifications and corresponding tests for these connectors.
