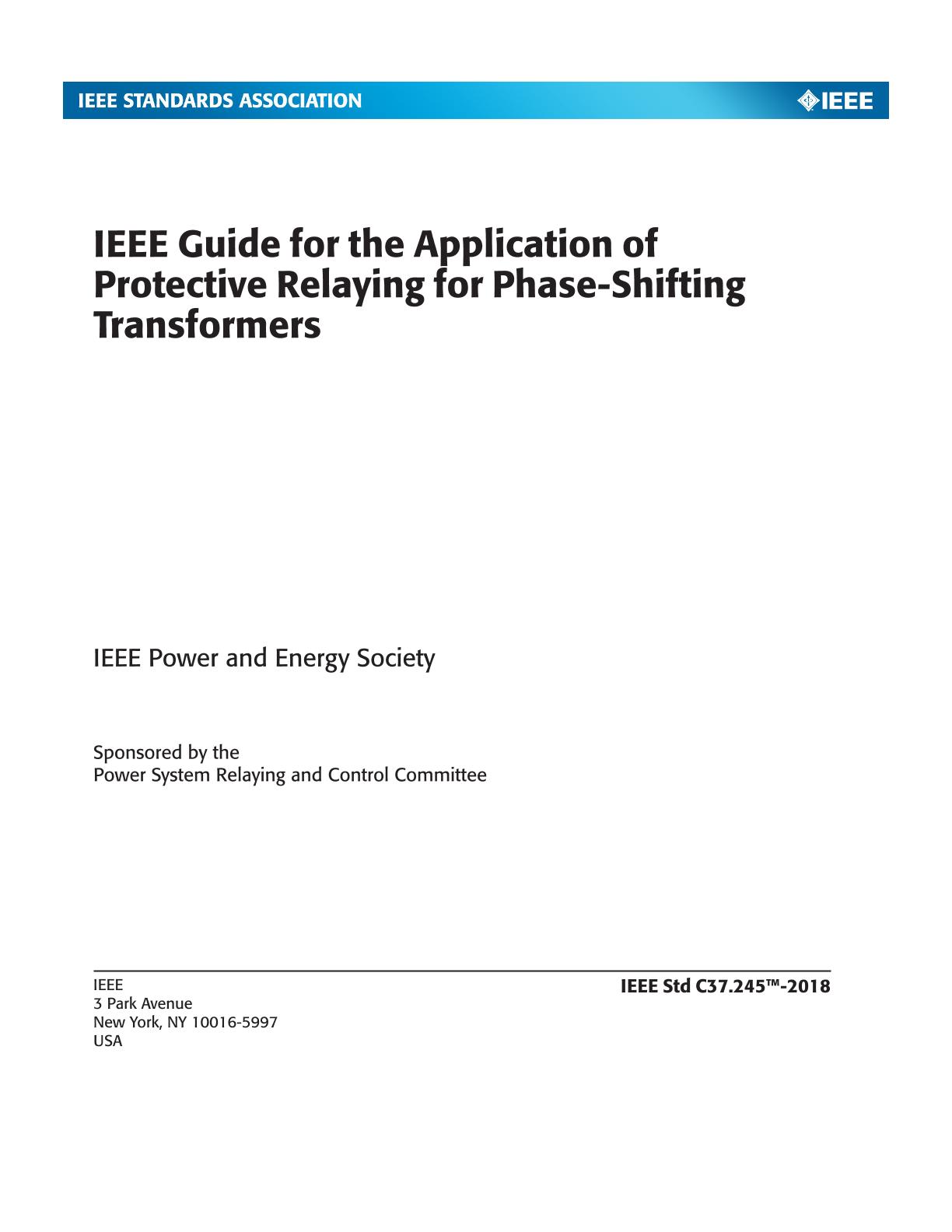

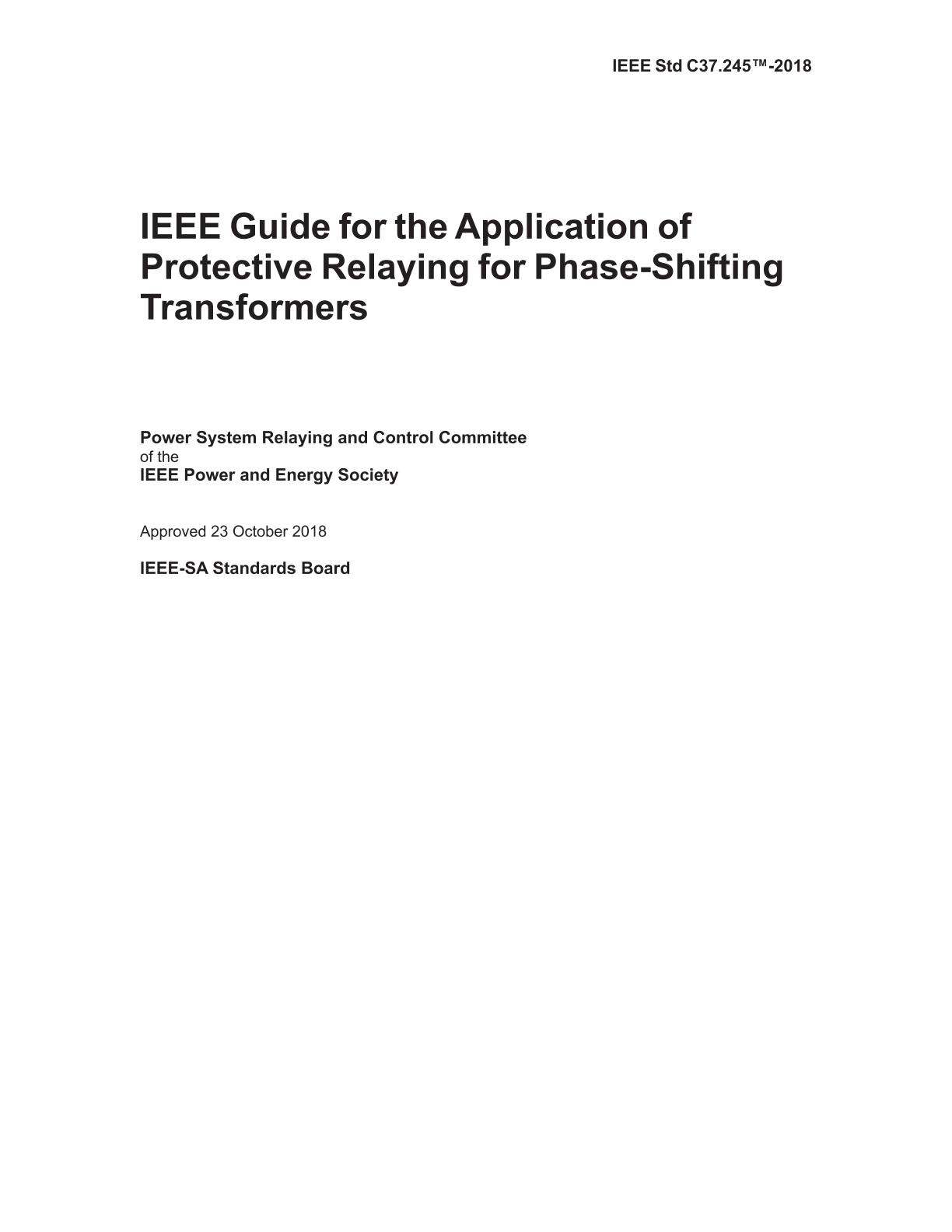

IEEE C37.245-2018

IEEE Guide for the Application of Protective Relaying for Phase-Shifting Transformers

IEEE, 05/24/2019

Publisher: IEEE

File Format: PDF

$50.00$100.00

Description

Published:24/05/2019

Pages:71

File Size:1 file , 3.4 MB

Note:This product is unavailable in Russia, Ukraine, Belarus

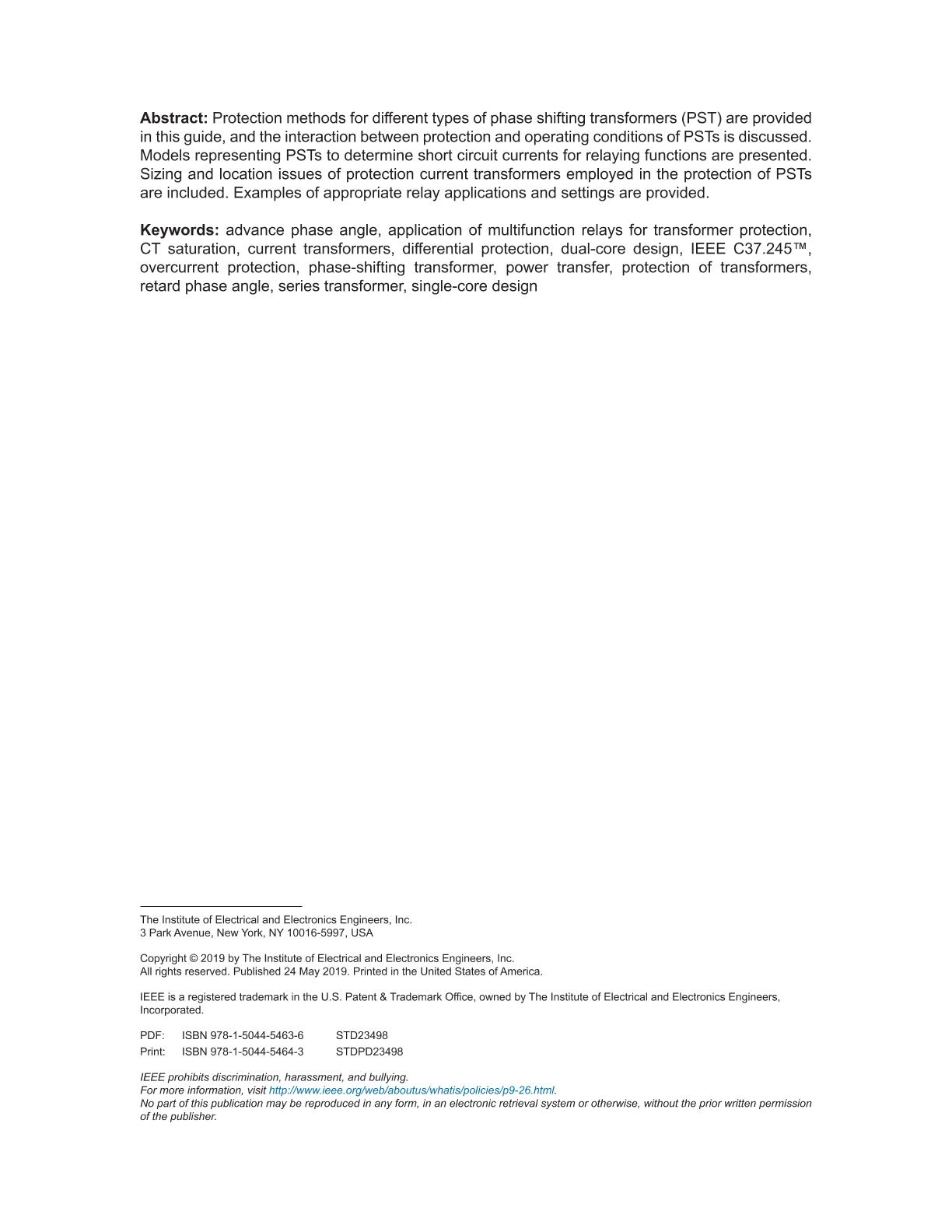

This guide provides protection methods for different types of phase shifting transformers (PSTs) and discusses the interaction between protection and operating conditions of PSTs. Models representing PSTs to determine short circuit currents for relaying functions are presented. Sizing and location issues of protection current transformers employed in the protection of PSTs are included. This guide provides examples of appropriate relay applications and settings.
