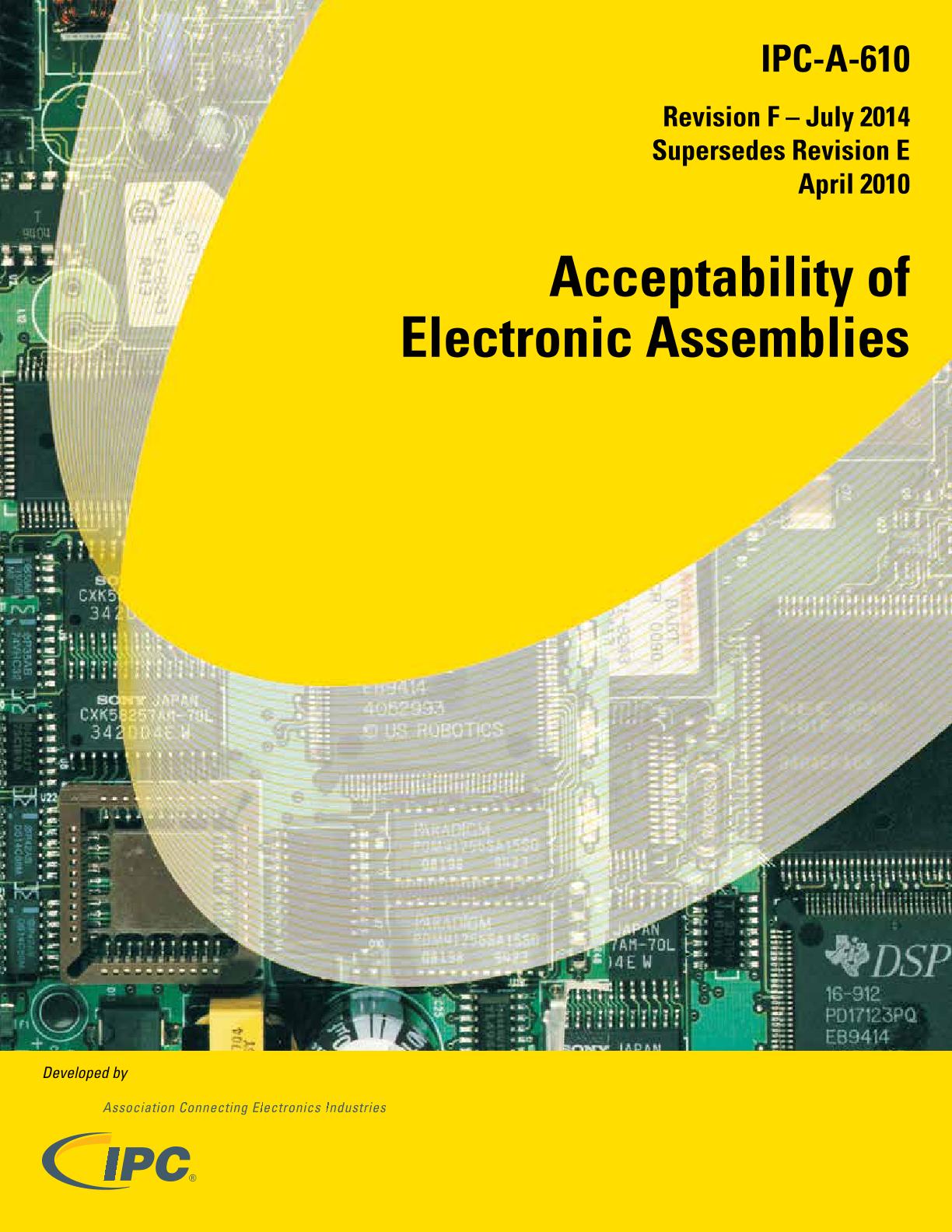

IPC A-610F

IPC-A-610 is the most widely used electronics assembly standard in the world. A must for all quality assurance and assembly departments, IPC-A-610F illustrates industry-accepted workmanship criteria for electronics assemblies through detailed statements reflecting acceptable and defect conditions, supported by full-color photographs and illustrations. This revision includes two new SMT termination styles, as well as changes in plated-through hole fill and BGA void criteria. Additionally, wherever possible statements were modified to make readability easier and to enhance understanding - all without eleminating any requirements.

Major topics include:

• flex attachment,
• board-in-board,
• part-on-part,
• both lead-free and tin-lead criteria,
• component orientation and soldering criteria for through hole,
• SMT,
• cleaning, marking, coating and laminate requirements.

IPC-A-610 is invaluable for all inspectors, operators and trainers. Revision F has 814 photos and illustrations of acceptability criteria - 86 of them new or updated. The document synchronizes to the requirements expressed in other industry consensus documents and is most often used with the material and process standard IPC J-STD-001.
