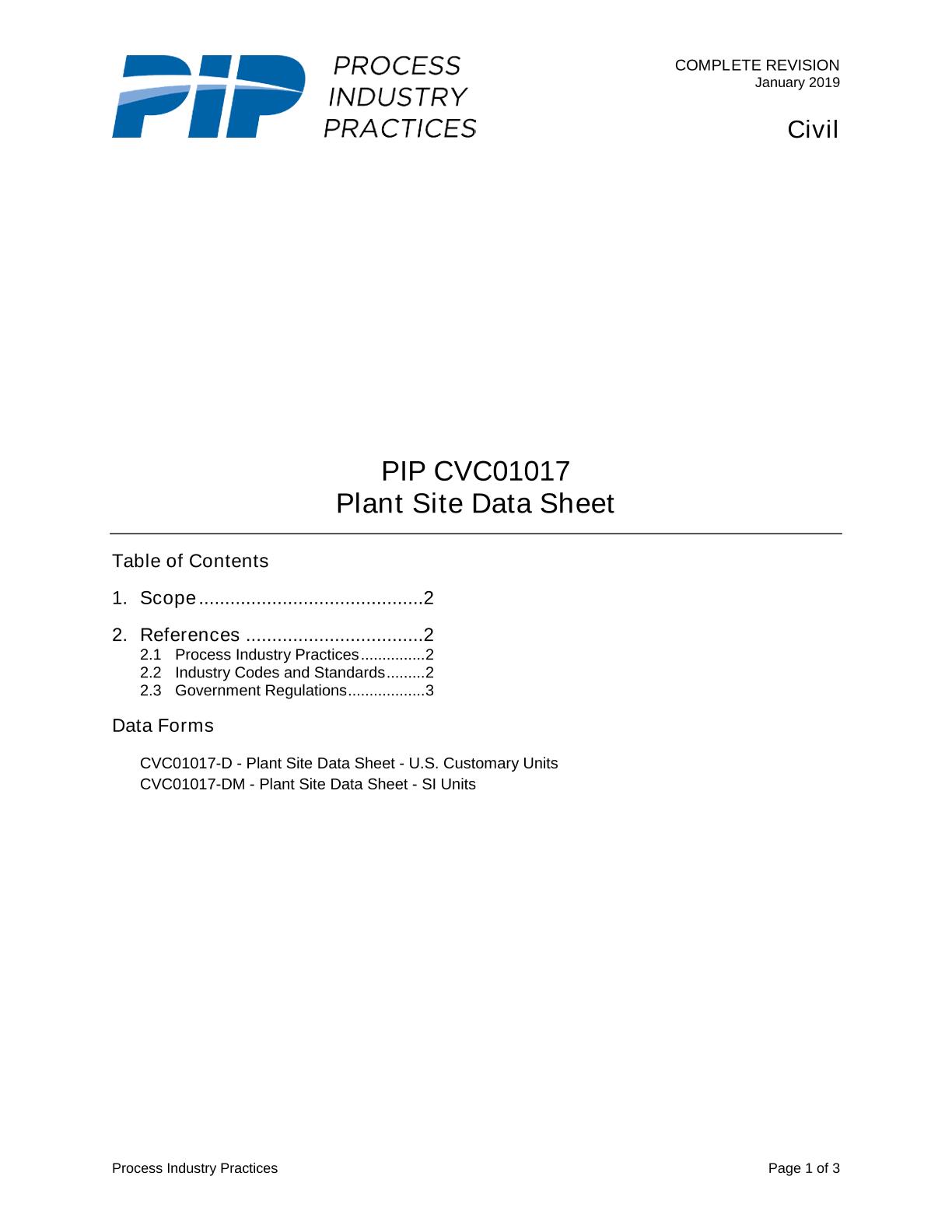

PIP CVC01017

This Practice provides the Plant Site Data Sheet for compiling and communicating civil/ structural/architectural design data for overall plant facilities.

The Plant Site Data Sheet provides design data for use in conjunction with PIP CVC01015 – Civil Design Criteria, PIP STC01015 – Structural Design Criteria, PIP STE05501 – Fixed Ladders Design Guide, PIP STE05511 – Standard Stairs Design Guide, PIP ARC01015 – Architectural and Building Utilities Design Criteria and PIP CVC01018 – Project Data Sheet.

The plant site data should be provided by the owner and communicated to the project team. In the event the owner cannot provide the data, the design professional shall work with the owner to compile and complete the data sheet. Not all information in these documents may be applicable to a specific site. Some information may be applicable to work performed by other disciplines and should, therefore, be issued to all disciplines for their use.
