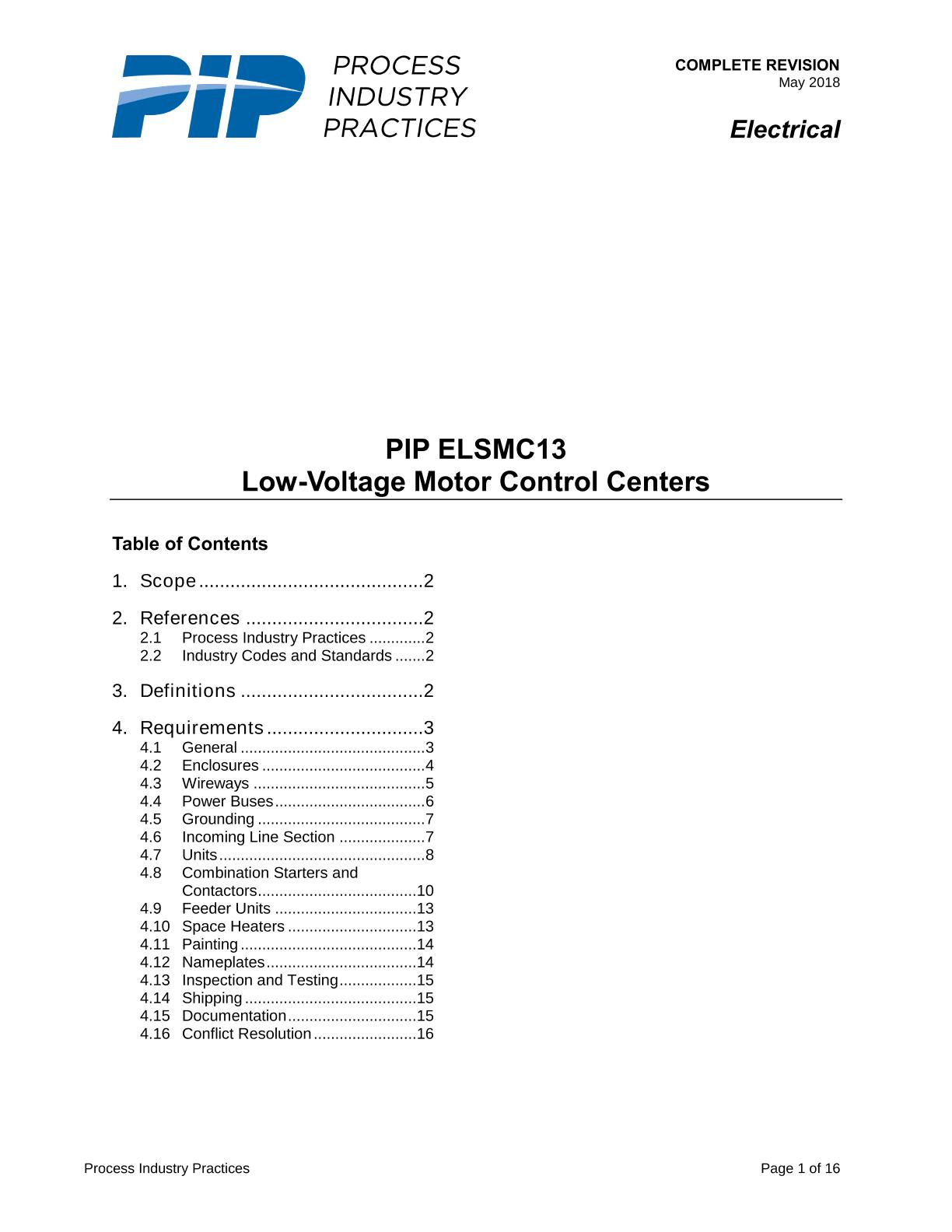

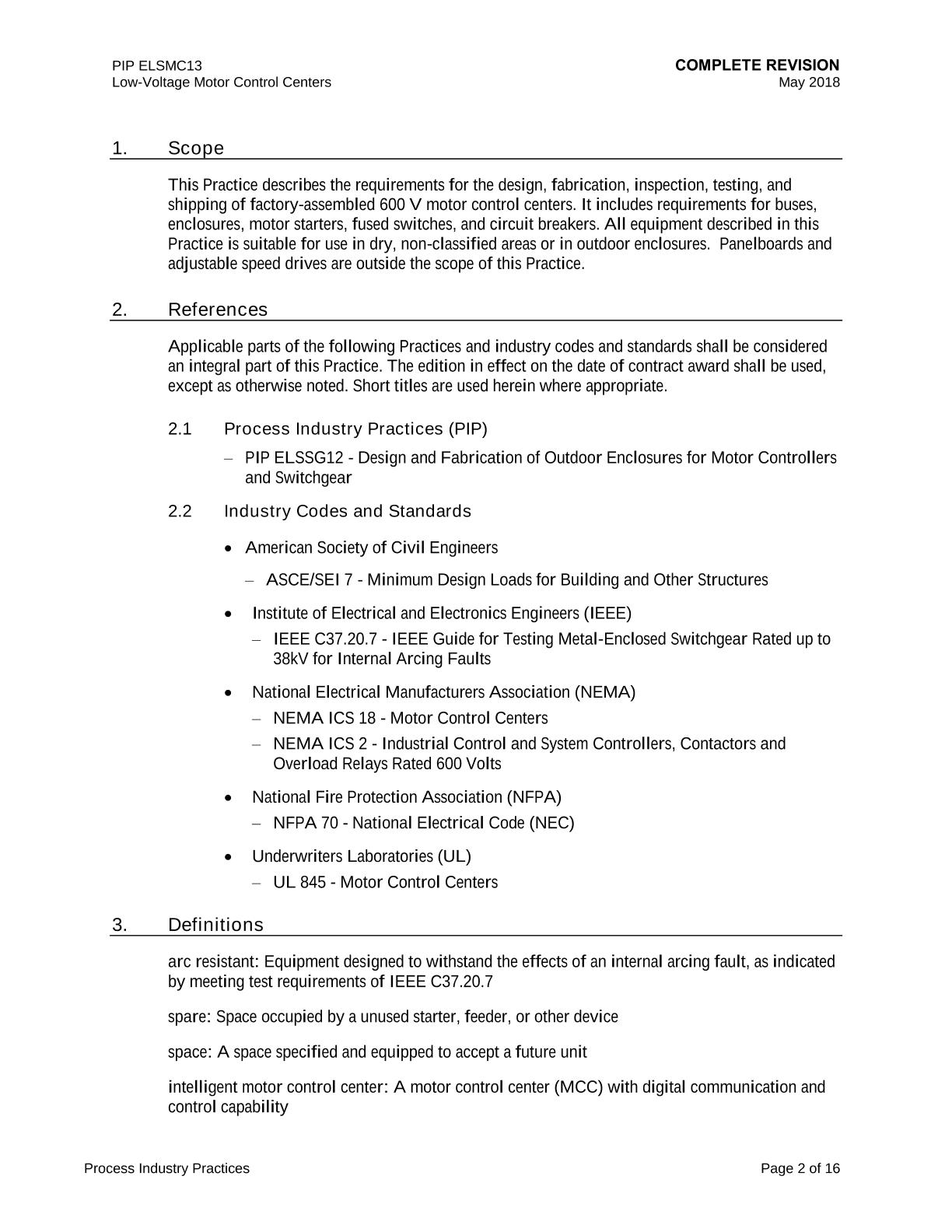

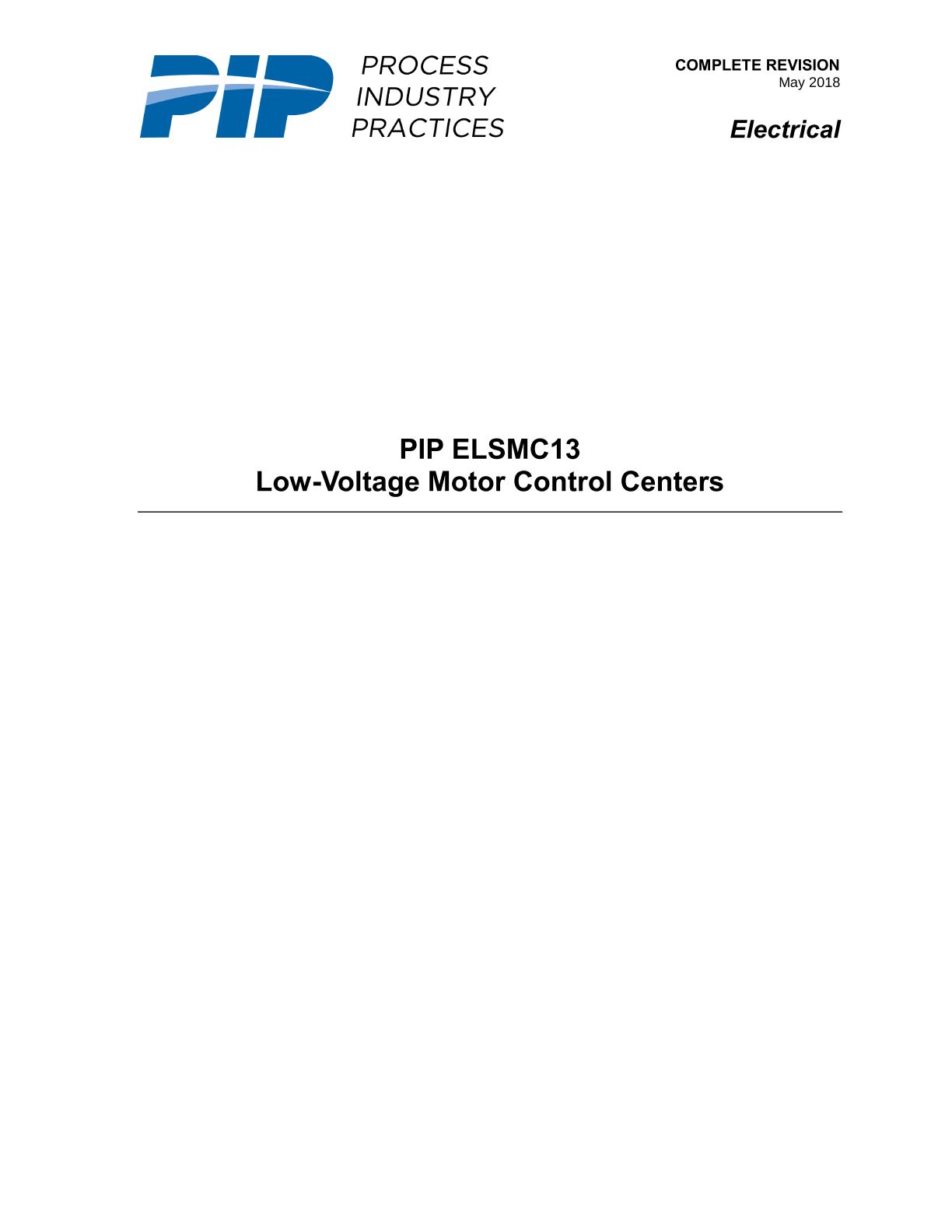

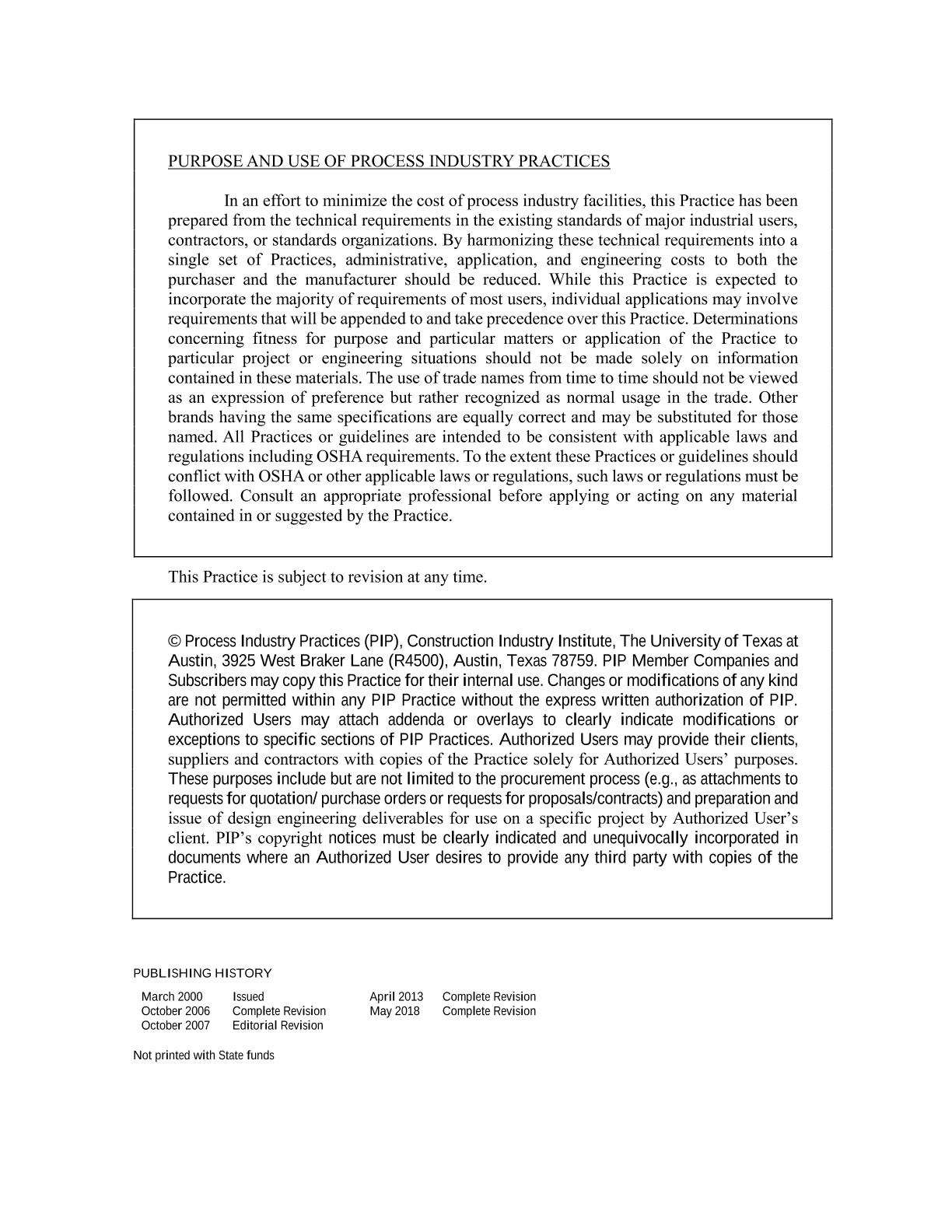

PDF Preview

PIP ELSMC13

Low-Voltage Motor Control Centers [Complete Revision]

Process Industry Practices, 05/01/2018

Publisher: PIP

File Format: PDF

$75.00$150.00


Published:01/05/2018

Pages:24

File Size:1 file , 1.1 MB

Note:This product is unavailable in Ukraine, Russia, Belarus

This Practice describes the requirements for the design, fabrication, inspection, testing, and shipping of factory-assembled 600 V motor control centers. It includes requirements for buses, enclosures, motor starters, fused switches, and circuit breakers. All equipment described in this Practice is suitable for use in dry, non-classified areas or in outdoor enclosures. Panelboards and adjustable speed drives are outside the scope of this Practice.
