PDF Preview

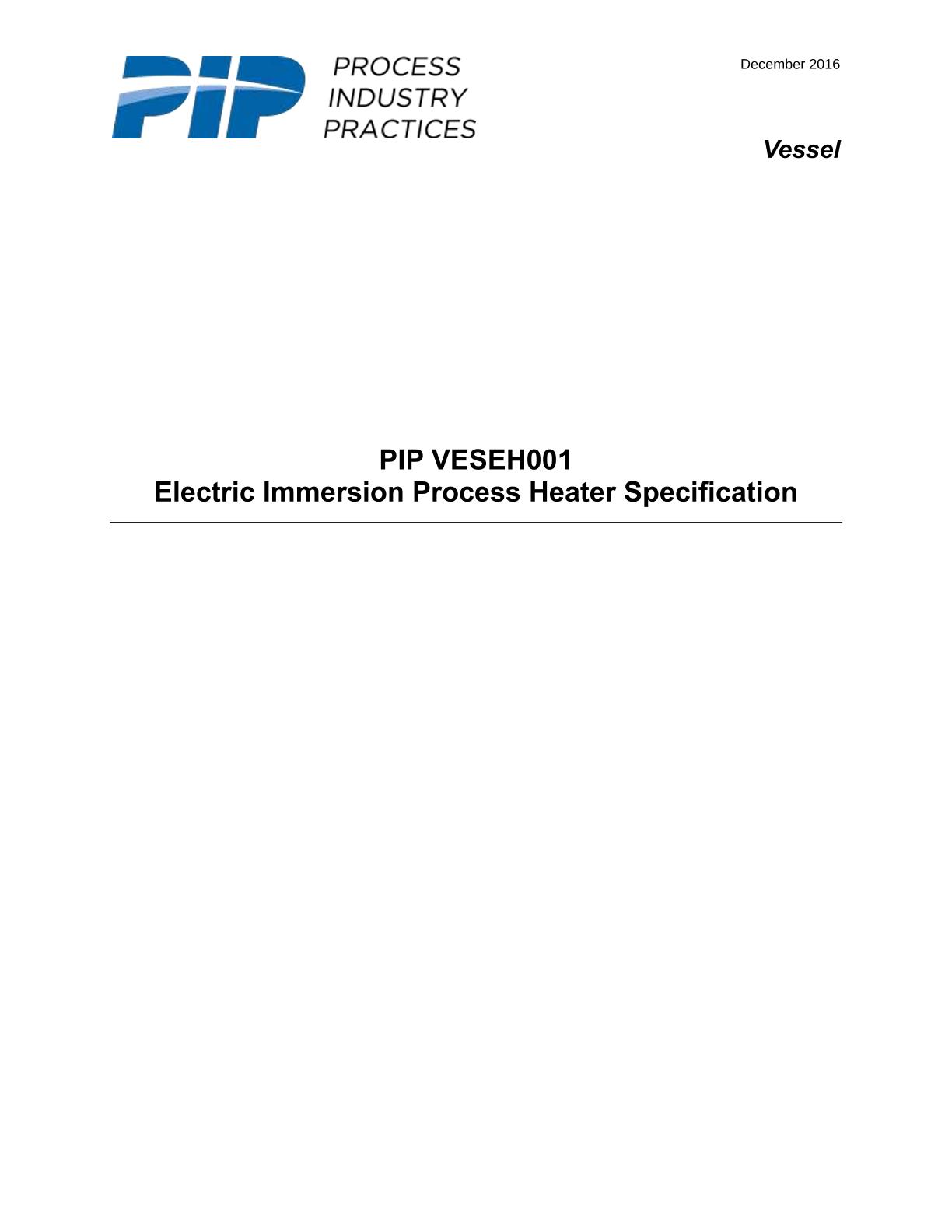

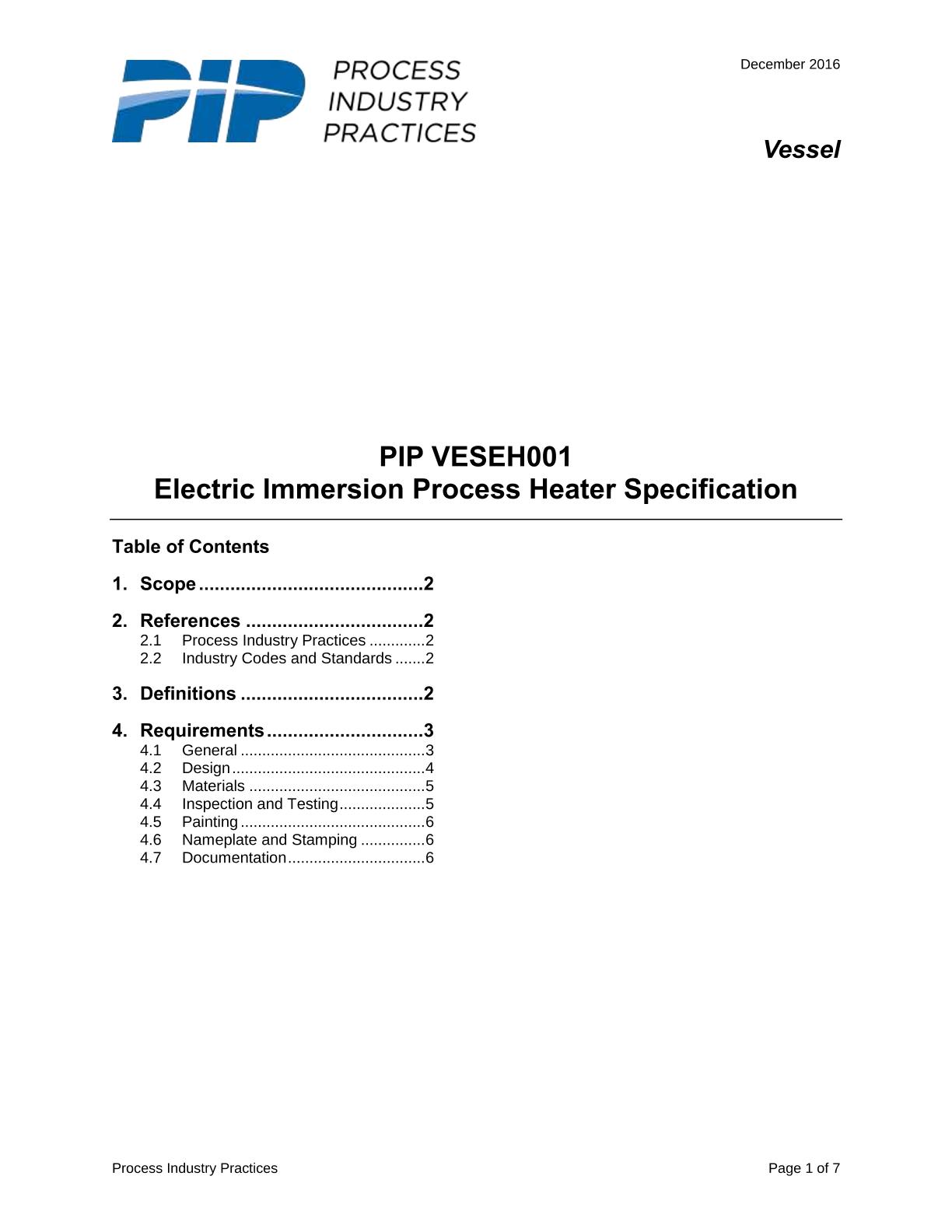

PIP VESEH001

Electric Immersion Process Heater Specification

Process Industry Practices, 12/01/2016

Publisher: PIP

File Format: PDF

$50.00$100.00


Published:01/12/2016

Pages:9

File Size:1 file , 260 KB

Note:This product is unavailable in Ukraine, Russia, Belarus

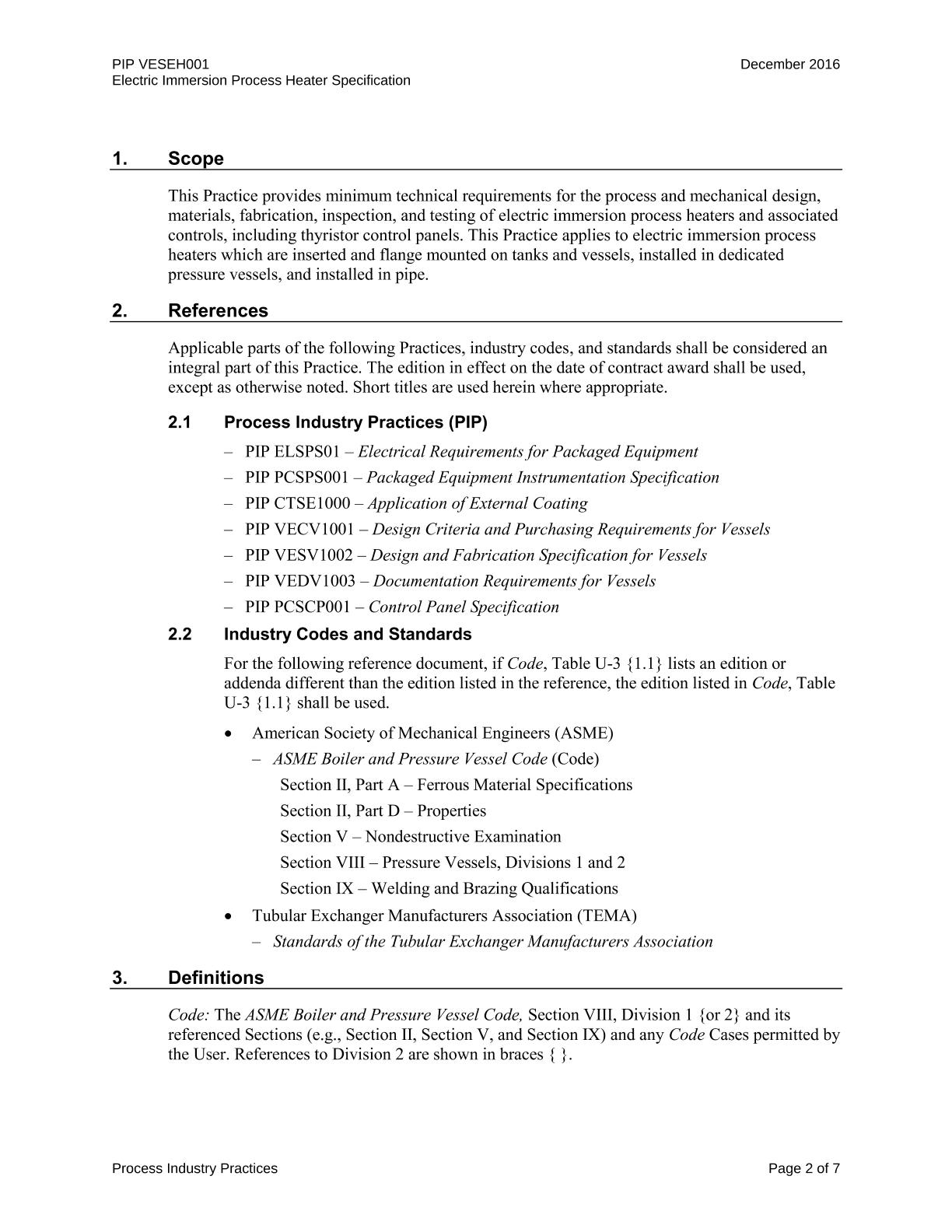

This Practice provides minimum technical requirements for the process and mechanical design, materials, fabrication, inspection, and testing of electric immersion process heaters and associated controls, including thyristor control panels. This Practice applies to electric immersion process heaters which are inserted and flange mounted on tanks and vessels, installed in dedicated pressure vessels, and installed in pipe.
