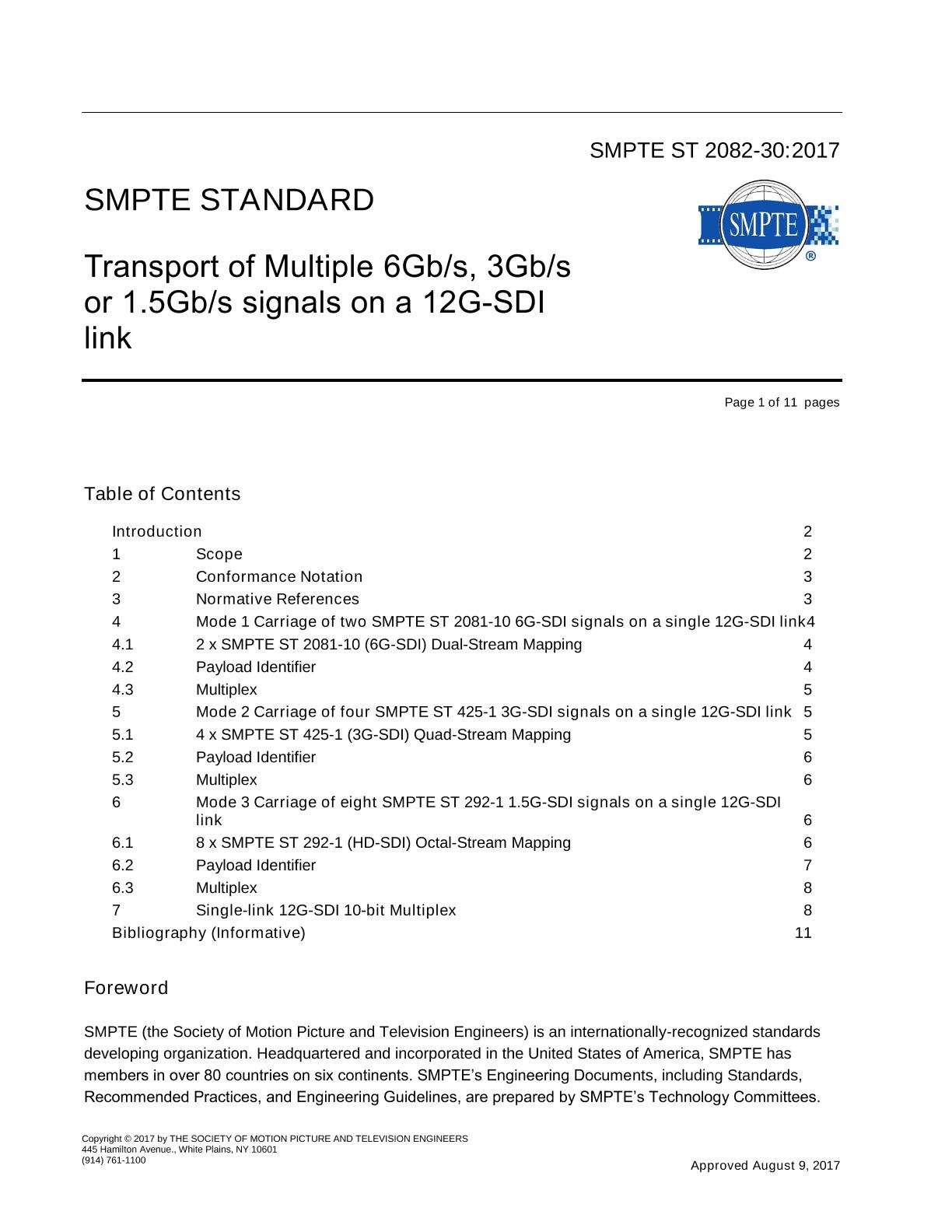

SMPTE ST 2082-30:2017

Transport of Multiple 3Gb/s or 1.5Gb/s Signals on a 12G-SDI Link

Society of Motion Picture and Television Engineers, 08/09/2017

Publisher: SMPTE

File Format: PDF

$40.00$80.00

Published:09/08/2017

Pages:11

File Size:1 file , 350 KB

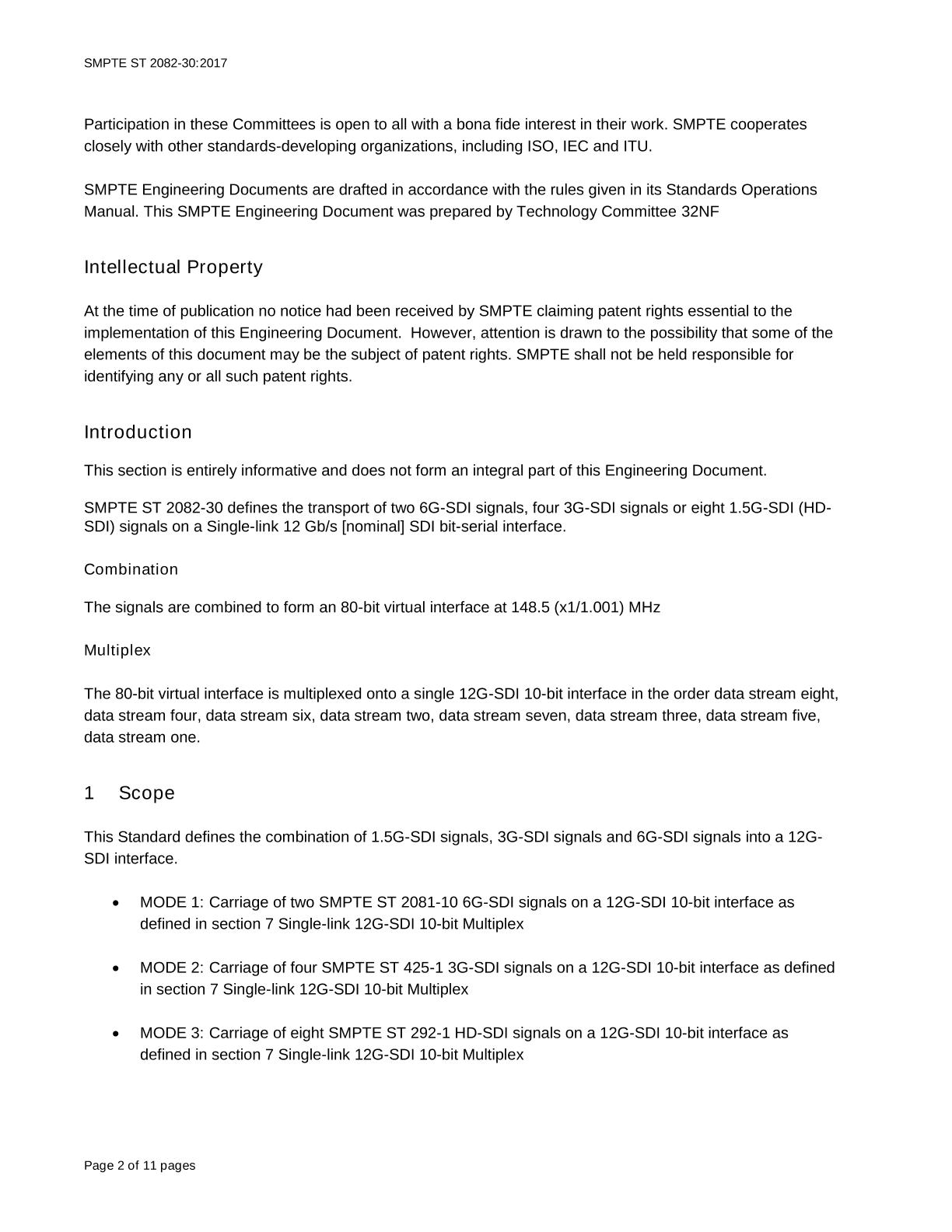

This Standard defines the combination of 1.5G-SDI signals, 3G-SDI signals and 6G-SDI signals into a 12G-SDI interface.

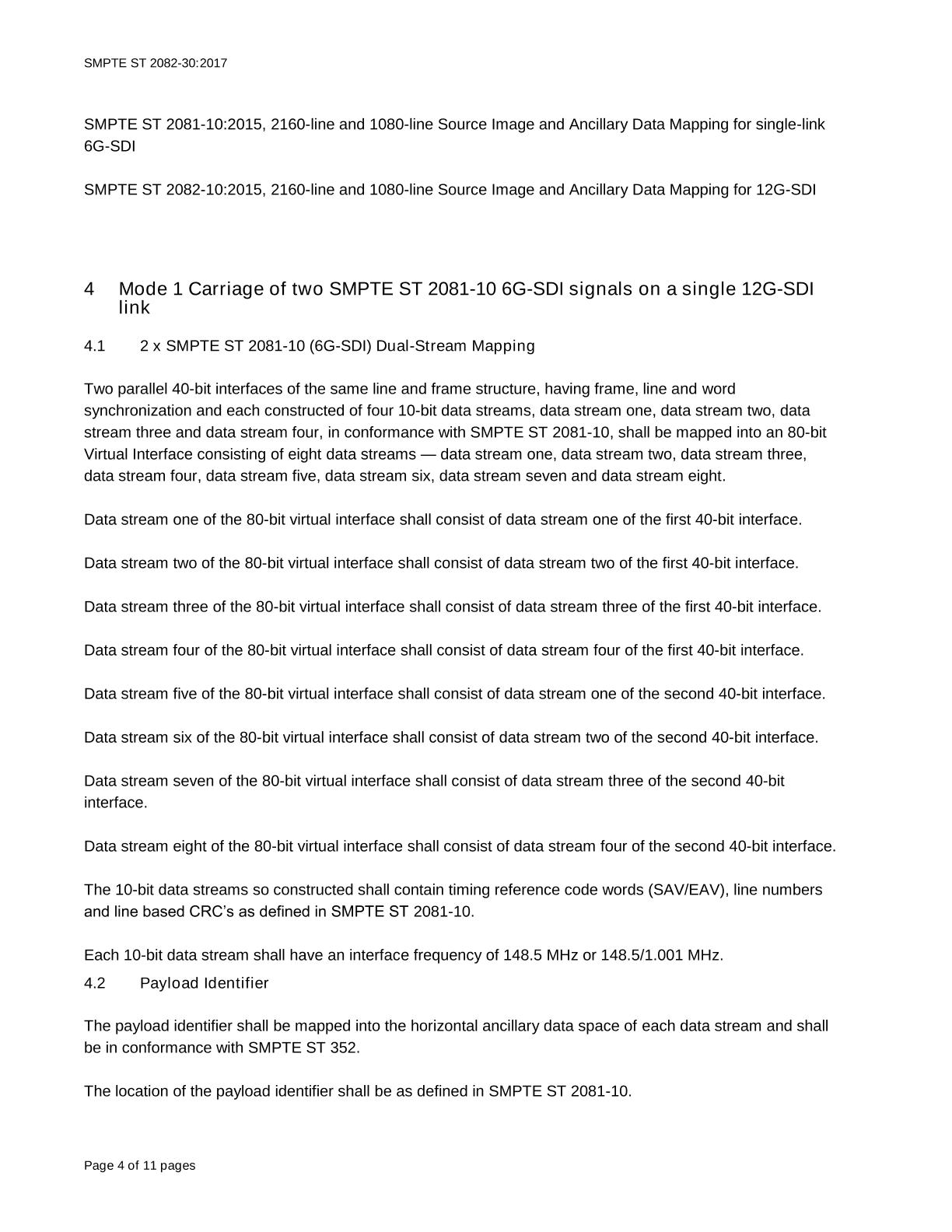

MODE 1: Carriage of two SMPTE ST 2081-10 6G-SDI signals on a 12G-SDI 10-bit interface as defined in section 7 Single-link 12G-SDI 10-bit Multiplex
MODE 2: Carriage of four SMPTE ST 425-1 3G-SDI signals on a 12G-SDI 10-bit interface as defined in section 7 Single-link 12G-SDI 10-bit Multiplex
MODE 3: Carriage of eight SMPTE ST 292-1 HD-SDI signals on a 12G-SDI 10-bit interface as defined in section 7 Single-link 12G-SDI 10-bit Multiplex
